HKM-082323 41-Inch Bladeless Tower Fan 10 Speeds 80 Degree Oscillation 1-9 Hour Timer Remote for Bedroom and Office

HKM-082323 · Bladeless Tower Fan · () · 7 kg gross

41-Inch Bladeless Tower Fan with 10 Speeds and 80 Degree Oscillation41-Inch Bladeless Tower Fan with Remote

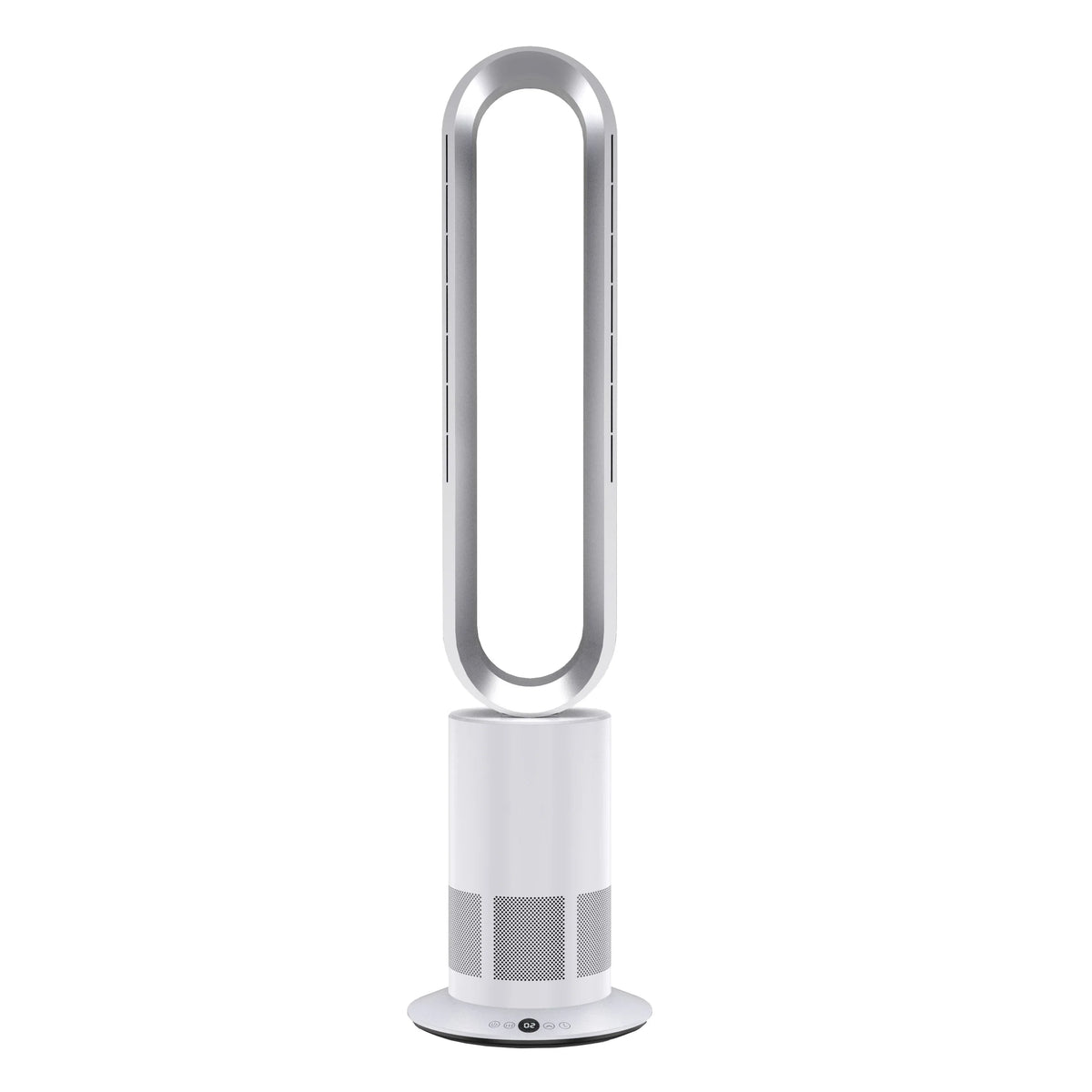

A 41 in (104 cm) bladeless tower with ten fan speeds, 80 degree oscillation and a 1 to 9 hour timer, built around a 45W brushless motor that moves 320 to 620 cubic feet per minute through a full-height slot. No exposed blade at any height, a touch panel on the base plate and a remote that clips to the column.

The loop draws air through the grille at the bottom of the cylinder, accelerates it through a 1.5 mm slot that runs the full height of the oval and releases it as one continuous sheet. Because the slot is continuous rather than a ring of blades, the air leaves at the same speed from top to bottom, which is why the tower does not feel like it is blowing at your knees and nothing at your face.

It suits a bedroom, a living room or a home office where a bladed fan is either a hazard or an eyesore. It is not an air conditioner and it has no filter: the tower moves air, it does not chill or clean it, so a 95 F room stays 95 F and simply feels less still.

At a Glance

• 41 in Tower — 104 cm column on a 12 in / 30 cm base plate
• No Exposed Blade — Smooth loop, safe around toddlers and pets
• 10 Fan Speeds — Plus natural wind and sleep mode
• 80 Degree Oscillation — Wide sweep, stoppable at any point
• 1 to 9 Hour Timer — One hour steps, shuts off on its own
• 45W Brushless Motor — 320 to 620 CFM at the loop face
• Touch Panel on Base — Four keys, LED ring, no remote needed
• 38 to 52 DB — Sleep mode is the quietest step
• 5.5 kg Net — 7 kg boxed, 115 x 35 x 31 cm carton
• White Silver — White body, brushed silver loop
• Wipe-clean Loop — No grille to unscrew, no blade to dust
• 120 V AC, 60 Hertz — US plug, 5 ft cord

What the Tower Is Made Of

The loop is a single molding in painted ABS with a matte outer face and a satin inner channel, screwed together rather than clipped. That matters after a move: a clipped loop develops a rattle at speed six and there is no way to tighten it. The base plate is a 12 in (30 cm) disc with a steel insert, wide enough that a 41 in tower does not tip when a door slams or a dog runs past it.

The intake grille wraps the lower third of the cylinder and is molded as one piece with the housing, so there is no seam for dust to collect in. Behind it sits a mixed-flow impeller on a brushless DC motor. Brushless is the reason the tower can hold a steady low speed instead of stalling and hunting at step one, and it is also the reason a 45W motor can move this much air without the whine a brushed motor develops after a season.

The control panel sits on the base plate, angled up so you can read it standing over the tower. Four keys cover power, speed, oscillation and timer, with a blue LED ring that shows the setting and a row of small lights for the speed step. There is no LCD, which is deliberate: a backlit screen in a bedroom is the thing people end up taping over. The remote mirrors all four keys and adds a sleep key that drops the fan one step per hour.

• Painted ABS loop, 41 in / 104 cm column
• 12 in / 30 cm base plate with steel insert
• Brushless DC motor, 45W, 620 to 1600 rpm
• Touch panel with blue LED ring, no LCD
• 5 ft cord with a US two-prong plug

Two details separate a tower that feels solid from one that does not. The first is slot width. Too wide and the airflow collapses into a puff at arm's length, too narrow and it whistles above step seven. This one runs 1.5 mm around the whole oval. The second is balance: the impeller is corrected with a weight before assembly and the loop is isolated from the base with a rubber gasket, so the tower does not drum a hum into a bedside table through its own feet.

How the Air Moves

A mixed-flow impeller inside the base pulls room air through the lower grille and pressurizes the loop. The air escapes through the 1.5 mm slot that runs around the inside of the oval, and because the slot is continuous the sheet leaves at the same speed along the full height. A bladed fan cannot do that: its airflow peaks at the blade tips and falls away between them, which is the chop you feel on your face at close range.

The second effect is entrainment. The sheet leaving the slot drags still room air along with it, so the volume that reaches you is several times what the impeller actually moves. That is the honest reason a 45W bladeless tower feels stronger than a 45W bladed fan, and it is also why the airflow number on the box is measured at the loop face rather than at the motor.

At step one the tower moves about 320 CFM and at step ten about 620 CFM, measured at the loop face. For a 200 sq ft room that is enough to turn the air over every five minutes at step four, which is where many people leave it through the evening.

Oscillation runs 80 degrees on a geared ring in the base rather than on the motor shaft. Putting the sweep downstream of the motor keeps the motor under a constant load, so the pitch of the fan does not change as the tower turns, and the sweep can be stopped anywhere without the column drifting back to center.

Where It Works and Where It Does Not

It suits a room up to about 300 sq ft with the tower 12 to 18 in out from a corner and the loop aimed across the space rather than at a sofa. Pushed flat against a wall it will move air along the wall and feel weak; pulled out into the room it fills the space. In a bedroom the sleep mode plus the timer is the setting many buyers settle on: the fan steps down as the room cools and the LED ring dims so it does not light the ceiling.

It is not an air conditioner and it is not a purifier. There is no filter in this model, so it will not take pollen or smoke out of the air. What it does is keep air moving at a speed you can sleep in, which is the actual reason people buy a fan and the reason a tower this size earns its floor space.

• Bedroom: sleep mode, timer 2 to 4 hours, oscillation on
• Living room: step six to eight, 80 degree sweep, 12 in out from the corner
• Home office: step two or three, fixed, aimed at the desk from three feet
• Nursery: step two, fixed away from the crib, timer 3 hours

What Arrives and What It Weighs

Stand the tower upright for an hour after unpacking so the impeller settles on its mounts before the first run. The column and the loop ship as one piece; only the base plate needs the four screws in the carton.

One Finish

White Silver pairs a white body with a brushed silver loop and a white base plate. The loop is the one part that carries the metal tone, so the tower reads as white from across a room and only shows the silver when you are close to it.

The finish is paint over ABS rather than anodised metal, so a scouring pad will dull it and a solvent will lift it. A damp cloth with a drop of dish soap is enough. The inner channel of the loop collects dust faster than the outside because that is where the air leaves, and it is the part people forget.

Cleaning, Dust and Off-Season Storage

Wipe the inner channel of the loop every two weeks in season. A dry microfiber cloth on a stick reaches the full height, and the channel is where the dust line forms because that is where the air leaves.

Vacuum the lower intake grille with a brush head on the same schedule. A clogged intake is the usual reason a bladeless tower feels weak in its second summer, and the usual reason the motor runs hotter than it should.

Do not spray cleaner into the slot. The slot leads straight into the impeller housing and liquid that goes in will sit there. Spray the cloth, not the tower.

Before storage, run the tower on step ten for ten minutes with the windows open to dry the impeller housing, then wipe the loop and coil the cord loosely.

Store upright if you can, or on its side with the loop supported. Storing it face down puts the whole weight of the base on the loop seam.

There is no user-serviceable bearing. If the tower develops a scrape or a squeal at low speed, stop using it: that is the impeller touching the housing, and running it will damage the motor.

Specifications

Frequently Asked Questions

Shipping, Returns and Warranty

Every HKM-082323 ships with the store policies below. Returns and warranty requests follow the same coverage window shown in the four panels, and support answers within one business day.

The HKM-082323 is a 41 in bladeless tower for a room where a bladed fan does not belong: a bedroom with a toddler, a living room with a cat that climbs, an office where the fan runs all day. Ten speeds, 80 degrees of sweep, a 1 to 9 hour timer, a touch panel at standing height and a remote that clips to the column. It moves air rather than chilling it, so it will not rescue a 95 F afternoon, but it makes a still room sleepable without a blade at knee height.
