Compact 4-Wheel All-Terrain Scooter
HKM-3169107 Mobility Scooter

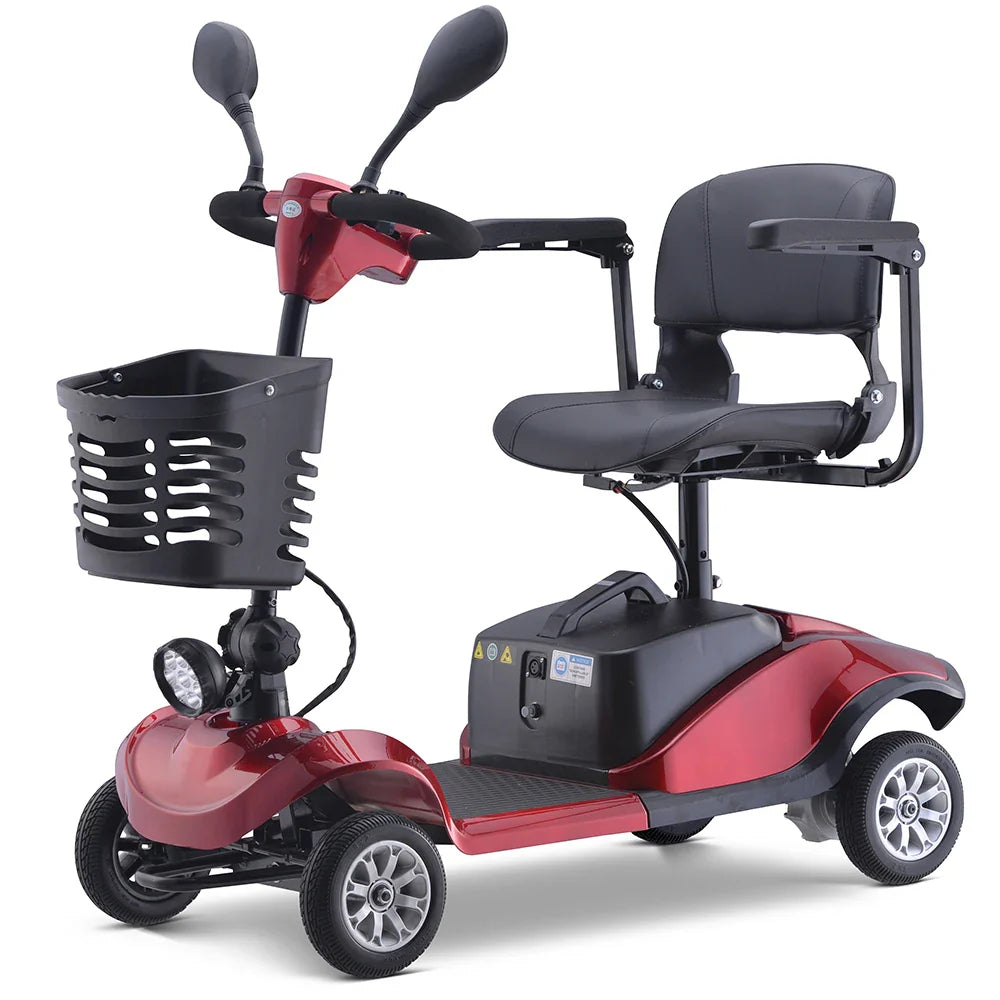

HKM-3169107 is a compact 4-wheel all-terrain mobility scooter with 8 in solid tires and rear suspension that smooths out cracked sidewalks and park paths. It pairs a captain seat, dual mirrors, LED headlight and a front basket, and is built for riders up to 265 lb on short trips and errands at speeds up to 5 mph.
265 lb Load Capacity8 in Solid All-Terrain Tires12.4 mi (20 km) Range5 mph (8 km/h) Top SpeedRear Spring SuspensionCaptain Seat With ArmrestsLED Headlight and MirrorsDisassembles for Transport
Load Capacity
265 lb
120 kg rated
Top Speed
5 mph
8 km/h cruise
Range per Charge
12.4 mi
20 km typical
Motor Power
250 W
24 V DC brushed
Battery Pack
24 V 12 Ah
Sealed lead-acid
Suspension
Rear Spring Pair
Two rear shock absorbers
Overview
HKM-3169107 is a compact 4-wheel all-terrain mobility scooter sized for neighborhood sidewalks, park paths and uneven pavement. The chassis rides on four 8-inch solid tires with a chunky tread pattern, and a pair of rear spring shock absorbers smooths out expansion joints, curb cuts and the rough surface of a stone driveway. The scooter is rated for occupants up to 265 lb (120 kg).
A 24 V sealed lead-acid battery pack feeds a 250 W class drive motor on the rear transaxle, and the scooter cruises at up to about 5 mph (8 km/h) on level ground. Range on a single charge reaches approximately 12.4 mi (20 km) under typical flat, paved conditions, which is plenty for a morning of errands and an afternoon at the park without hunting for an outlet.
The captain seat is padded and contoured with flip-up armrests and a swivel base, so the rider can face the door before stepping off the deck. Dual rear-view mirrors mounted on the tiller give better visibility at intersections, and an LED headlight at the front of the tiller brightens the path ahead for late-afternoon or early-evening rides.
The chassis disassembles into a handful of pieces without tools for transport in a sedan trunk. A removable front basket carries groceries or a jacket, and a battery gauge on the tiller console fills as the pack charges. Anti-tip wheels at the rear keep the scooter planted when backing up on a slight slope.
Key Features
4-Wheel All-Terrain Chassis
HKM-3169107 rides on four 8-inch solid tires with a chunky tread pattern that grips cracked sidewalks, park paths and the rough surface of a stone driveway. The wide track and long wheelbase keep the chassis planted when crossing a curb cut or backing up on a slight slope.
Rear Spring Suspension
A pair of rear spring shock absorbers sits behind the rear wheels and smooths out expansion joints, brick walkways and uneven pavement before the bumps reach the captain seat. The suspension is tuned for everyday surfaces rather than off-road trails.
250 W Drive Motor
A 24 V 250 W class brushed drive motor on the rear transaxle pulls the scooter to a top speed of about 5 mph (8 km/h) on level ground. The motor controller includes a soft-start ramp so the scooter does not lurch when the throttle is first pressed.
Removable 24 V Battery Pack
The 24 V 12 Ah sealed lead-acid battery pack lifts off the rear section without tools and can be charged on or off the scooter. The pack is heavy by design, which keeps the center of gravity low and improves stability during cornering.
Front Basket and Captain Seat
The removable front basket carries groceries, a jacket or a small cooler, and the captain seat is padded and contoured with flip-up armrests. The seat swivels 360 degrees so the rider can face the door before stepping off the deck.
Dual Mirrors and LED Headlight
Two rear-view mirrors mounted on the tiller give better visibility at intersections and cross-streets, and an LED headlight at the front of the tiller brightens the path for late-afternoon or early-evening visibility. A horn button is positioned next to the headlight switch.
Electromagnetic Safety Brake
The electromagnetic brake engages the moment the throttle lever returns to neutral, holding the scooter on inclines up to about 8 degrees. A manual free-wheel lever under the seat lets a caregiver push the scooter when the power is off, then re-engages the brake when the lever returns to the locked position.
Anti-Tip Wheels and Solid Tires
A pair of anti-tip wheels at the rear of the chassis keep the scooter planted when reversing up a slight slope or crossing a door threshold. Four solid tires mean no roadside flats, no tube replacements and no pressure checks between rides.
Full Specifications
Model
HKM-3169107 | Mobility Scooter
Frame Material
Carbon Steel
Motor Type
Brushed DC, Rear Transaxle
Motor Power
250 W
Battery Voltage
24 V
Battery Capacity
12 Ah
Removable Battery
Yes, Single Slide-Out Pack
Charger Input
100-240 V AC, 50/60 Hz
Charge Time
6-8 h
Top Speed
5 mph (8 km/h)
Range per Charge
12.4 mi (20 km)
Climbing Angle
8 deg
Turning Radius
47.2 in (120 cm)
Front Wheels
8 in Solid All-Terrain
Rear Wheels
8 in Solid All-Terrain
Tire Type
Solid Knobby, Flat-Free
Brake System
Electromagnetic + Manual Free-Wheel
Suspension
Rear Spring Pair
Controller
Delta Tiller, Finger Levers
Seat Type
Captain Seat, Padded
Seat Width
18 in (46 cm)
Armrests
Flip-Up, Padded
Lighting
Front LED Headlight + Dual Mirrors
Unfolded Dimensions
44 x 21 x 36 in
Product Weight
95 lb (43 kg)
Battery, Range, and Charging
HKM-3169107 runs on a single 24 V 12 Ah sealed lead-acid battery pack that sits in the rear section of the chassis. The pack slides out without tools and clicks back into place, so the rider can charge it on the scooter or carry it to a wall outlet for an off-board top-up. Under typical conditions on flat, paved ground with a standard occupant, the scooter travels up to about 12.4 mi (20 km) per charge.
The included off-board charger accepts 100-240 V input, which means the same charger works on US, European and most international mains with only a plug adapter. Charge time runs roughly six to eight hours from empty, and the charger LED switches from red to green when the pack is full. Riders who use the scooter every day should plan a top-up charge after each outing to keep the pack ready.
Tip: Store the 24 V pack indoors at room temperature and avoid leaving it in a hot car or a freezing garage. Charge the pack at least once every 30 days during long storage so the cells do not drop into a deep-discharge state, and never charge a pack that is below 0 deg C or above 45 deg C.
The 24 V pack can be charged on the scooter through the charge port under the rear section, or charged individually off-board for travel convenience.
Daily Use & Care
- Start each outing with the battery gauge at three or four lit segments and a planned route that stays close to home for the first few rides while you learn the controls.
- Use the dual mirrors at every driveway, alley and cross-street so you can spot cars and cyclists approaching from behind before you turn.
- Flip both armrests up before stepping onto the deck so you can stand beside the captain seat and lower yourself down without twisting your back.
- Approach uneven pavement and grass at low speed and let the rear suspension absorb the bumps before you lean into the throttle.
- Engage the horn button at blind corners, lobby doorways and park-path junctions where other people may not see the scooter approaching.
- Empty the front basket before folding the tiller or lifting the scooter into a trunk so the basket does not catch on the door frame.
- Wipe the captain seat and armrest covers once a week with a damp cloth and let them air dry before sitting down again.
What's in the Box
- 1 x HKM-3169107 4-wheel all-terrain mobility scooter (front section, rear section, captain seat, battery pack)
- 1 x front mounting basket
- 1 x 24 V sealed lead-acid battery pack
- 1 x off-board battery charger (100-240 V input)
- 1 x pair of tiller-mounted rear-view mirrors
- 1 x pair of armrests (factory mounted)
- 1 x ignition key set (2 keys)
- 1 x user manual and quick-start guide
Frequently Asked Questions
What is the load capacity of HKM-3169107?+
HKM-3169107 is rated for occupants up to 265 lb (120 kg). This includes the rider plus any cargo carried on the seat, in the front basket or on the deck. Exceeding the rating can stress the frame, motor and brake, so keep total weight within the published limit.
How far can the scooter travel on a single charge?+
The 24 V 12 Ah battery pack delivers up to about 12.4 mi (20 km) on a flat, paved surface with a typical occupant. Range drops on hills, soft ground, cold weather and with a heavier rider, so plan shorter trips in winter or hilly areas.
Can I take HKM-3169107 on an airplane?+
The 24 V 12 Ah sealed lead-acid battery does not meet common airline thresholds for mobility-device batteries because the pack is heavy and not user-removable in the airline sense. Riders should check the current airline policy before flying and arrange ground transport at the destination.
How compact is the scooter when disassembled?+
Disassembled, HKM-3169107 splits into a handful of pieces and the heaviest piece is the rear transaxle section. The pieces fit across the cargo floor of most sedans and in the back of small SUVs with the rear seats folded flat.
Will the scooter climb a curb or a small hill?+
Yes. HKM-3169107 is rated for slopes up to about 8 degrees on paved surfaces. Approach steep grades straight on rather than at an angle, and keep the speed dial in a low setting until you know how the scooter behaves on your usual routes.
Do the solid tires ever go flat?+
No. The front and rear wheels use solid knobby tires that cannot be punctured. They ride slightly firmer than pneumatic tires on very rough ground, but you will never face a roadside flat or a tube replacement.
What maintenance does the scooter need?+
Charge the 24 V battery pack after each day of use, wipe the frame with a dry cloth, and check the captain seat, armrest latches and tire tread once a month. There are no tire pressures to set and no oil changes; the drive motor is sealed for normal street use.
Can the seat height be adjusted?+
Yes. The captain seat post includes a height-adjustment collar with a spring-loaded pin. Pull the pin, slide the seat to a comfortable height so the rider's feet rest flat on the deck, then release the pin and confirm the seat is locked before riding.
Service & Policies
Free Shipping on All Orders
Every order ships free. Handling Time: 0-1 business days (Monday to Friday). Transit Time: 2-5 business days (Monday to Friday). A tracking number is emailed as soon as the parcel leaves our warehouse.
180 Days Purchase Protection
Your purchase is protected for 180 days from the delivery date against manufacturing defects and damage in transit. If something arrives wrong, we make it right.
30 Days Money-Back Guarantee
Not completely satisfied? Request a return within 30 days of delivery for a full refund. We keep the process simple and hassle-free.
24 Months Warranty Service
The product is covered by a 24-month warranty from the delivery date against manufacturing defects. Coverage includes parts and labor; normal-wear items are excluded.
CEFDA RegisteredISO 13485UN38.3 BatteryEMC CompliantRoHS1 Year Warranty
Why Choose the HKM-3169107
All-Terrain Confidence
Four 8-inch solid all-terrain tires and a pair of rear spring shock absorbers make the chassis comfortable on cracked sidewalks, park paths and stone driveways. The suspension is tuned for everyday surfaces rather than off-road trails, so the scooter stays predictable at neighborhood speeds.
Mirrors and Lights Included
Dual rear-view mirrors mounted on the tiller give the rider better visibility at intersections and cross-streets, and an LED headlight at the front of the tiller brightens the path for late-afternoon or early-evening rides. Both features are factory installed and require no extra purchase.
Quick Disassembly
The chassis disassembles into a handful of pieces without tools for transport in a sedan trunk. The four-piece layout means a caregiver can load the scooter without straining, and the heaviest piece is light enough for one person to carry up a flight of stairs if needed.
Flat-Free Daily Use
Four solid knobby tires mean no roadside flats, no tube replacements and no pressure checks between rides. The scooter is ready to go every morning without any pre-ride tire maintenance beyond a quick visual inspection of the tread.
Simple Controls for New Riders
A delta-style tiller with finger levers groups forward, reverse, speed selection and the horn in one place, and the speed dial offers a turtle setting for indoor riding. New riders can learn the layout in a single afternoon without switching between throttle types.
Documented Standards
HKM-3169107 carries CE, FDA registration, ISO 13485, UN38.3 battery transport and EMC markings, giving buyers a clear compliance trail for import, travel and clinical review.
Controls & Indicators
Tiller Throttle Levers
Squeeze the right lever with your right thumb to move forward and the left lever with your left thumb to reverse. Release either lever and the electromagnetic brake brings the scooter to a controlled stop within a short distance.
Power Key and Battery Gauge
Insert the ignition key and turn it clockwise to power on the controller. The four-segment battery gauge fills to indicate the current charge level of the 24 V pack, and the LED status indicator flashes a fault code if a connection drops out.
Speed Selection Dial
Turn the rotary speed dial toward the turtle icon for slower indoor speeds and toward the rabbit icon for full 5 mph (8 km/h) cruise outdoors. New riders should leave the dial at the lowest setting until they are comfortable with the throttle response.
Horn Button
Press the horn button on the tiller face to sound a short warning tone. Use the horn at blind corners, park-path junctions and cross-streets where other people may not see the scooter approaching.
Headlight Switch
Flip the headlight switch on the control panel to turn the front LED headlight on for late-afternoon or early-evening visibility. The headlight stays on until the switch is flipped off, even after the scooter is powered down for the day.
Free-Wheel Release Lever
Push the red free-wheel lever under the seat forward to disengage the electromagnetic brake for short pushes on flat ground. Pull the lever back to the locked position to re-engage the brake before riding or before leaving the scooter parked.
Seat Swivel Lever
Pull the seat swivel lever under the captain seat and rotate the seat 360 degrees until the latch clicks into the forward-facing detent. The seat locks in place at four detent positions so the rider can face the door before stepping off.
Pre-Ride Safety Checklist
- Confirm the 24 V battery pack is fully clicked into the rear section and locked before sitting down on the captain seat.
- Check the four 8-inch solid tires for cracks, embedded debris and proper seating on the rims.
- Power on the controller, watch the battery gauge climb and verify the speed dial is set to the slowest setting for the first test ride.
- Release the throttle lever and confirm the electromagnetic brake engages immediately and holds the scooter on a gentle slope.
- Adjust the two rear-view mirrors on the tiller so the rider can see both lanes and the rear quarter of the scooter before pulling out.
- Step on the deck, sit in the captain seat and swivel it gently until the seat latch clicks into the forward-facing detent.
- Lift each armrest to confirm the flip-up latch works and returns to a locked position before transferring on or off.
- Plan a clear practice route on a smooth sidewalk, keep the speed dial low and avoid slopes steeper than 8 degrees until you know the scooter.
Quick Troubleshooting
The scooter will not power on+
Confirm the 24 V battery pack is fully clicked into the rear section and the ignition key is turned clockwise to the on position. If the LED status indicator still does not light, plug the charger in for ten minutes to wake a deeply discharged pack before retrying.
Range drops below normal between charges+
Cold weather, soft ground and a heavier rider all reduce range. Charge the 24 V pack fully at room temperature, lower the speed dial, and avoid slopes steeper than 8 degrees until the gauge returns to its usual level.
The electromagnetic brake will not release+
Power off the scooter, wait five seconds and power it back on so the brake controller re-calibrates. If the brake still holds, push the red free-wheel lever under the seat back to the locked position to re-engage the brake mechanism.
The throttle feels sluggish or unresponsive+
Lower the speed dial to the slowest setting and power-cycle the scooter to reset the controller. Inspect the throttle cables where they enter the tiller for kinks, and confirm the connectors under the tiller cover are fully seated.
The battery gauge reads empty after a short ride+
The 24 V pack may have lost contact with the rear section. Power off, slide the pack out and reseat it until the latch clicks. If the gauge still drops quickly, charge the pack individually on the off-board charger to refresh the cells.
An alarm tone sounds during use+
A continuous beep usually means the brake is engaged while the throttle is pressed. Release the throttle lever to neutral, then press the power key once to clear the alarm. Two short beeps indicate low pack voltage and call for a charge.
Certifications & Standards
HKM-3169107 is documented to the standards commonly required for consumer mobility equipment imported into the United States. The scooter carries CE and FDA registration marks, is built in an ISO 13485 quality facility and ships with UN38.3-tested battery transport documentation.
- CE Mark for European Conformity
- FDA Establishment Registration
- ISO 13485 Medical Device Quality
- UN38.3 Battery Transport Tested
- EMC Compliance for Controller Electronics
Important Safety Notes
HKM-3169107 includes several layers of passive and active safety, but the scooter is only as safe as the rider and the environment around it. Read the user manual before the first ride, practice in an open indoor space and follow the slope and surface limits below for everyday use.
- Do not exceed the 265 lb (120 kg) load capacity, including rider and cargo.
- Do not climb slopes steeper than 8 degrees or cross soft, slippery ground.
- Always release the throttle lever to neutral to engage the electromagnetic brake before standing up.
- Check both rear-view mirrors before pulling out of a driveway or making a turn at an intersection.
- Power off the scooter before flipping the armrests, swiveling the seat or removing the battery pack.
- Charge the 24 V pack indoors and keep the charger and pack away from water and heat.
- Inspect the throttle cables, armrest latches and tire tread once a month for wear or damage.
- Store the scooter and the battery pack indoors when not in use to avoid moisture and temperature extremes.
