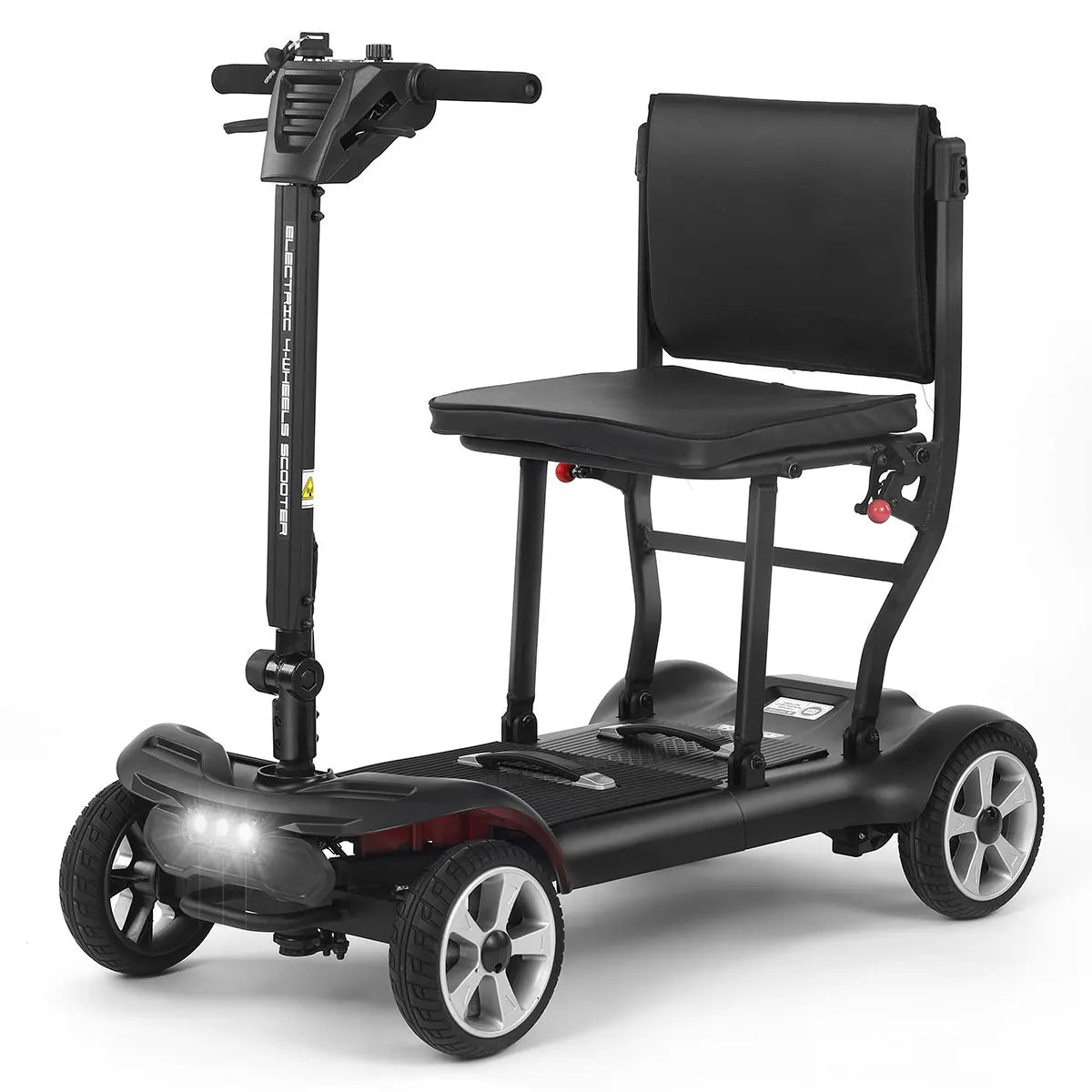

All-Terrain Folding Scooter With LED Headlight and Solid Tires
HKM-3398483 Mobility Scooter
The HKM-3398483 is a folding all-terrain 4-wheel mobility scooter built for riders who move between indoor floors and outdoor paths that include pavement, sidewalks, and light gravel. A bright LED headlight integrated into the front cowl lights your path during early morning or evening rides, while solid all-terrain tires eliminate flat tires entirely. The scooter supports up to 265 lb (120 kg), reaches about 5 mph (8 km/h), and travels roughly 12.4 mi (20 km) per charge from its 24 V 12 Ah lithium battery.
265 lb (120 kg) Capacity24 V 12 Ah Lithium Battery250 W Brushless Motor5 mph (8 km/h) Top Speed12.4 mi (20 km) Range8-Inch All-Terrain Solid TiresLED Headlight With Brake LightManual Folding Frame
Load Capacity
265 lb (120 kg)
Maximum rider weight including clothing and personal items
Top Speed
5 mph (8 km/h)
Maximum speed on level ground with a rider of average weight
Range per Charge
12.4 mi (20 km)
Typical range on a full charge under normal conditions
Motor Power
250 W
Brushless DC motor driving the rear wheels
Battery
24 V 12 Ah Li-ion Fixed
Lithium battery installed under the foot deck
Tire Size
8 in (20 cm) All-Terrain Solid
Open-tread solid PU tires for varied surfaces
Overview
The HKM-3398483 uses a manual folding frame that collapses by releasing two quick-lock levers and folding the seat forward onto the deck. The folded package is compact enough to fit in most car trunks and stores easily in a closet or corner. The steel frame has a clean matte black finish with integrated red reflectors at the front and rear for passive visibility.
A 24 V 12 Ah lithium battery mounted under the foot deck powers a 250 W brushless motor driving the rear wheels. The motor provides smooth acceleration to a top speed of 5 mph (8 km/h) and handles gentle inclines up to about 6 to 8 degrees. An electromagnetic brake stops the scooter promptly when you release the throttle lever.
The padded seat offers a contoured shape with a medium-height backrest for lower-back support during longer rides. No armrests are fitted, which reduces overall width and simplifies side transfers from beds or chairs. The tiller column adjusts for height via a quick-release clamp, with textured rubber grips and a simple dashboard showing battery level.
Lighting includes a bright LED headlight in the front cowl and a red LED brake light at the rear of the chassis. The 8-inch solid tires have an open-tread pattern that grips better than smooth city tires on uneven surfaces. Rear anti-tip wheels add stability on slopes and curbs.
Key Features
All-Terrain Open-Tread Tires
The 8-inch solid tires feature a blocky open tread pattern that maintains traction on cracked pavement, packed dirt, driveway aprons, and short grass sections where smooth city tires slip. Solid PU construction eliminates flats completely.
Bright LED Headlight
An LED headlight integrated into the front bodywork casts a bright white beam forward for dawn, dusk, and nighttime travel. The light draws minimal power from the battery and lasts for thousands of hours of operation.
Rear LED Brake Light
A red LED at the back of the chassis illuminates whenever you release the throttle, alerting pedestrians, cyclists, and drivers behind you that you are slowing or stopped.
Simple Manual Folding
Two quick-release levers unlock the frame so you can fold the seat forward and collapse the steering column. No tools are required, no batteries are needed, and the process takes under 30 seconds once learned.
Contoured Padded Seat
The seat pan is shaped to distribute weight evenly across the seating surface, and the backrest supports the lower spine during rides of moderate duration. The absence of armrests narrows the profile for navigating tight doorways.
Adjustable Height Tiller
Loosen the quick-release clamp to slide the tiller up or down, accommodating riders of different heights and arm lengths. Proper tiller positioning reduces shoulder strain during longer trips.
Electromagnetic Braking
Release the throttle lever and the electromagnetic brake brings the scooter to a controlled stop automatically. This system requires no hand strength to operate and needs no periodic adjustment.
Rear Anti-Tip Wheels
Small stabilizer wheels at the rear corners contact the ground if the main frame tilts too far backward on a slope or curb approach, adding protection against tip-overs.
Full Specifications
Model
HKM-3398483 | Mobility Scooter
Frame Material
Steel with Matte Black Finish
Motor Type
Brushless DC Motor
Motor Power
250 W
Battery Voltage
24 V
Battery Capacity
12 Ah
Removable Battery
No (Fixed Under Deck)
Charge Time
5-6 Hours
Charger Input
100-240 V AC, 24 V 2 A Output
Top Speed
5 mph (8 km/h)
Range per Charge
12.4 mi (20 km)
Climbing Angle
Approximately 6-8 Degrees
Turning Radius
Approximately 47 in (120 cm)
Front Wheels
8 in (20 cm) All-Terrain Solid Tire
Rear Wheels
8 in (20 cm) All-Terrain Solid Tire
Brake System
Electromagnetic (Release-to-Stop)
Controller
24 V Brushless Motor Controller
Lighting
LED Headlight and Rear LED Brake Light
Seat Type
Padded Contoured Seat with Backrest (No Armrests)
Armrests
Not Included
Tiller
Height-Adjustable Steering Column with Quick-Release Clamp
Folded Dimensions
Approximately 40 x 19.7 x 18.9 in (102 x 50 x 48 cm)
Product Weight
Approximately 86 lb (39 kg) including battery
Load Capacity
265 lb (120 kg)
Certifications
CE, UN38.3
Battery, Range, and Charging
The HKM-3398483 carries a 24 V 12 Ah lithium-ion battery permanently mounted beneath the foot deck. This pack stores approximately 288 Wh of energy and delivers roughly 12.4 mi (20 km) of real-world range per full charge under typical conditions. Actual distance varies with rider weight, terrain, average speed, temperature, and tire condition.
Charging is performed onboard using the supplied 24 V 2 A charger, which plugs into a port on the scooter chassis. The charger accepts 100-240 V AC input for compatibility with outlets worldwide. A full recharge from empty takes 5 to 6 hours, and the charger switches automatically to trickle mode when the battery reaches full capacity.
Tip: For longest battery life, avoid leaving the pack at extremely high or extremely low states of charge for extended periods. If storing the scooter unused for more than a month, charge the battery to approximately 70 percent and disconnect it from the main harness. Store in a dry location between 50 and 77 degrees F (10 and 25 degrees C).
Lithium-ion batteries lose a small amount of capacity each year through normal chemical aging. After 300 to 500 full charge cycles, you may notice range dropping to 70 to 80 percent of original spec. This is expected behavior. If range falls below 60 percent within the first two years, have the pack tested by a qualified technician.
Daily Use & Care
- Wipe down the seat and tiller grips after each use with a damp cloth to prevent sweat buildup from degrading the vinyl and rubber surfaces over time.
- Visually inspect all four tires before each ride for cracks, embedded debris, or uneven wear that could affect ride quality or safety.
- Charge the battery after each outing even if charge remains; frequent partial recharges extend total pack life compared to deep discharge cycles.
- Always fold the scooter on level ground and confirm both locking levers click fully into place before lifting or transporting the folded unit.
- Switch on the LED headlight whenever ambient light is reduced, including cloudy days, parking structures, and tree-lined paths.
- Keep the charger connector clean and dry, and inspect the cable periodically for fraying or kinking near the plug ends.
- If storing the scooter unused for more than a month, charge the battery to around 70 percent and disconnect it from the main harness.
What's in the Box
- 1 x HKM-3398483 All-Terrain 4-Wheel Mobility Scooter (frame, wheels, motor, controller)
- 1 x Padded Contoured Seat Unit with Backrest
- 1 x Adjustable Tiller Column with Dashboard
- 1 x 24 V 12 Ah Lithium Battery (installed under foot deck)
- 1 x 24 V 2 A Battery Charger (100-240 V input)
- 1 x User Manual and Assembly Instructions
- 1 x Basic Tool Kit Including Wrenches and Spare Fuses
- 1 x Reflective Safety Sticker Set
Frequently Asked Questions
How far does it travel on a full charge?+
Under typical conditions with an average-weight rider on level ground, expect approximately 12.4 mi (20 km) from a full 24 V 12 Ah charge. Heavier loads, hills, frequent stopping, and cold weather reduce actual range.
Are the tires pneumatic or solid?+
All four wheels use solid polyurethane tires that never require inflation and cannot be punctured by nails, glass, or thorns. They provide a firm ride quality and excellent durability.
Can I take this scooter on an airplane?+
The 24 V 12 Ah lithium battery falls within typical airline limits for mobility device batteries, but policies vary by carrier. Contact your airline well in advance to confirm current rules and procedures.
How do I fold and unfold it?+
Pull both red folding levers outward to unlock the joints, then fold the seat forward and lower the tiller until the frame collapses. Reverse the steps to unfold. Always perform the fold on flat, level ground.
Does it have suspension?+
This model does not include springs or shock absorbers. The solid tires provide some inherent cushioning, but you will feel bumps and surface irregularities more directly than on a suspended model.
What is the maximum rider weight?+
The HKM-3398483 supports riders weighing up to 265 lb (120 kg). This includes clothing and commonly carried items such as a bag or portable oxygen concentrator.
Can I use it indoors?+
Yes. The 5 mph (8 km/h) top speed, tight turning radius, and zero-emission electric motor make it suitable for homes, shopping centers, and other indoor spaces.
How long does charging take?+
Using the supplied 24 V 2 A charger, a fully depleted battery recharges in approximately 5 to 6 hours. Partial charges between outings are acceptable and do not harm lithium chemistry.
Service & Policies
Free Shipping on All Orders
Every order ships free. Handling Time: 0-1 business days (Monday to Friday). Transit Time: 2-5 business days (Monday to Friday). A tracking number is emailed as soon as the parcel leaves our warehouse.
180 Days Purchase Protection
Your purchase is protected for 180 days from the delivery date against manufacturing defects and damage in transit. If something arrives wrong, we make it right.
30 Days Money-Back Guarantee
Not completely satisfied? Request a return within 30 days of delivery for a full refund. We keep the process simple and hassle-free.
24 Months Warranty Service
The product is covered by a 24-month warranty from the delivery date against manufacturing defects. Coverage includes parts and labor; normal-wear items are excluded.
CE CertifiedUN38.3 Battery Safe Transport24 V Lithium-Ion BatteryAll-Terrain Solid Tire PackageElectromagnetic Brake SystemIntegrated LED Lighting250 W Brushless Motor
Why Choose the HKM-3398483
All-Terrain Grip Without Flats
The open-tread solid tires maintain traction on rougher surfaces where smooth city tires slip, and because they are solid polyurethane, they can never go flat. You eliminate the single most common cause of scooter breakdowns.
Visible in Low Light
The integrated LED headlight and brake light make you conspicuous to others during dawn, dusk, and nighttime travel. Being seen early gives drivers and pedestrians more time to react, which reduces collision risk.
Simple Fold Needs No Battery
With only two manual levers to release, you can fold this scooter even if the main battery is completely dead. That reliability matters when you need to load it into a vehicle away from home.
Low-Maintenance Design
Solid tires need no air pressure checks. The electromagnetic brake needs no adjustment. The brushless motor has no brushes to replace. This scooter minimizes the ongoing maintenance tasks that often discourage regular use.
Narrow Profile Without Armrests
The absence of armrests reduces overall width, making it easier to pass through standard doorways and navigate tight spaces in homes, stores, and medical offices.
Stable Low Battery Placement
Mounting the battery under the foot deck keeps the center of gravity low in the frame. This improves balance during turns and reduces the sensation of tipping when traversing uneven ground.
Controls & Indicators
Power Button
Press the power button on the dashboard to turn the system on. Press and hold for two seconds to shut off. The display lights up showing battery level and speed setting when powered.
Throttle Lever
Push the right-hand lever forward to accelerate ahead and ease off to slow down. Release the lever completely to engage the electromagnetic brake. The lever returns to center automatically when let go.
Speed Mode Button
Cycle through available speed presets using the mode button on the dash. Lower settings limit speed for indoor navigation; higher settings allow full outdoor speed.
Horn Button
Press the horn button near the left grip to sound an audible alert. Use it proactively at crosswalks, driveways, and wherever pedestrians or vehicles may enter your path.
Headlight Switch
Toggle the front LED on or off using the light switch on the dashboard. Run the headlight whenever visibility is reduced for your own awareness and for others to see you clearly.
Battery Gauge
The segmented bar graph on the display indicates remaining charge as a percentage. Recharge when the gauge drops to one or two segments to avoid running out mid-trip.
Folding Levers
Pull both levers outward to unlock the frame joints before folding. Push inward until they click to lock the frame in riding position. Always confirm both levers are fully engaged before sitting down.
Pre-Ride Safety Checklist
- Confirm the battery indicator shows at least two segments before departing on any trip beyond your immediate neighborhood.
- Squeeze both folding levers firmly to verify they lock securely in riding position with no looseness or play.
- Test throttle response in a clear area by pressing gently forward and confirming smooth acceleration without jerking.
- Press the headlight switch and verify the front LED illuminates brightly; check that the rear brake light activates when you release the throttle.
- Inspect all four tire surfaces for cracking, bulging, or embedded foreign objects that could cause vibration or damage.
- Confirm the tiller quick-release clamp is tight enough that the column does not wobble when you grip it.
- Sit on the seat and rock gently side to side to confirm it locks firmly onto its pedestal post.
- Check that both rear anti-tip wheels contact the ground when the scooter is parked on a level surface.
Quick Troubleshooting
Scooter powers on but does not move+
Confirm the throttle lever moves freely and the electromagnetic brake releases when pressed. Check that the freewheel lever is set to drive mode. Inspect motor and controller wiring if the issue persists.
Shorter range than expected+
Cold weather, hilly terrain, heavier rider weight, and worn tires all reduce range. Charge fully before each trip and avoid prolonged high-speed operation to maximize distance per charge.
Headlight or brake light not working+
Check the light switch position and confirm sufficient battery charge. Inspect wiring harness connections near the front and rear light assemblies for loose or corroded contacts.
Folding levers stick or do not lock+
Clean the lever pivots with a dry cloth and apply a small amount of silicone lubricant to the pins. If levers still do not click into place, check for bent linkage or debris in the joint.
Unusual noise from motor or wheels+
A low hum during acceleration is normal for brushless motors. Grinding, clicking, or squealing sounds indicate worn bearings, debris in the drivetrain, or misaligned components requiring prompt inspection.
Dashboard display flickers or blanks out+
Loose wiring between the battery and controller is the most common cause. Check all harness connections and ensure battery terminals are clean and tight. Persistent flickering may indicate a faulty dashboard module.
Certifications & Standards
The HKM-3398483 is manufactured according to applicable international standards for consumer electrical products and mobility devices. Below are the relevant certifications and compliance marks for this model.
- CE Marking - Conforms to European Union directives covering electrical safety, EMC, and product construction requirements.
- UN38.3 - Lithium battery tested and certified compliant with air, sea, and ground transport regulations.
- ISO 9001 - Produced under a documented quality management system covering design, manufacturing, and inspection processes.
- RoHS Compliance - Electrical components meet EU restrictions on hazardous substances in electronic products.
- FCC Part 15 - Electronic controls comply with limits for unintentional radio-frequency emissions in the United States.
Important Safety Notes
Safe operation of the HKM-3398483 requires attention to surroundings, proper pre-ride checks, and adherence to equipment limits. Review these guidelines regularly and share them with anyone who will operate the scooter.
- Confirm both folding levers are locked in riding position before sitting on the seat; partial engagement can cause the frame to collapse during use.
- Reduce speed significantly when turning, especially on cambered surfaces or slopes, to maintain stability and prevent tipping.
- Never exceed the stated 265 lb (120 kg) capacity; overloading compromises braking distance and increases tip-over risk.
- Use the horn proactively to announce your presence at intersections, blind corners, and in areas with pedestrian traffic.
- Avoid steep inclines above 8 degrees; the motor may stall and the brakes are not rated for steep descents.
- Keep hands, feet, and loose clothing clear of the wheels, folding joints, and motor housing at all times.
- Do not operate the scooter while impaired by medication, alcohol, or fatigue that affects judgment or reaction time.
- Inspect the scooter before each ride: verify brakes respond, tires are intact, lights work, and the battery has adequate charge.
