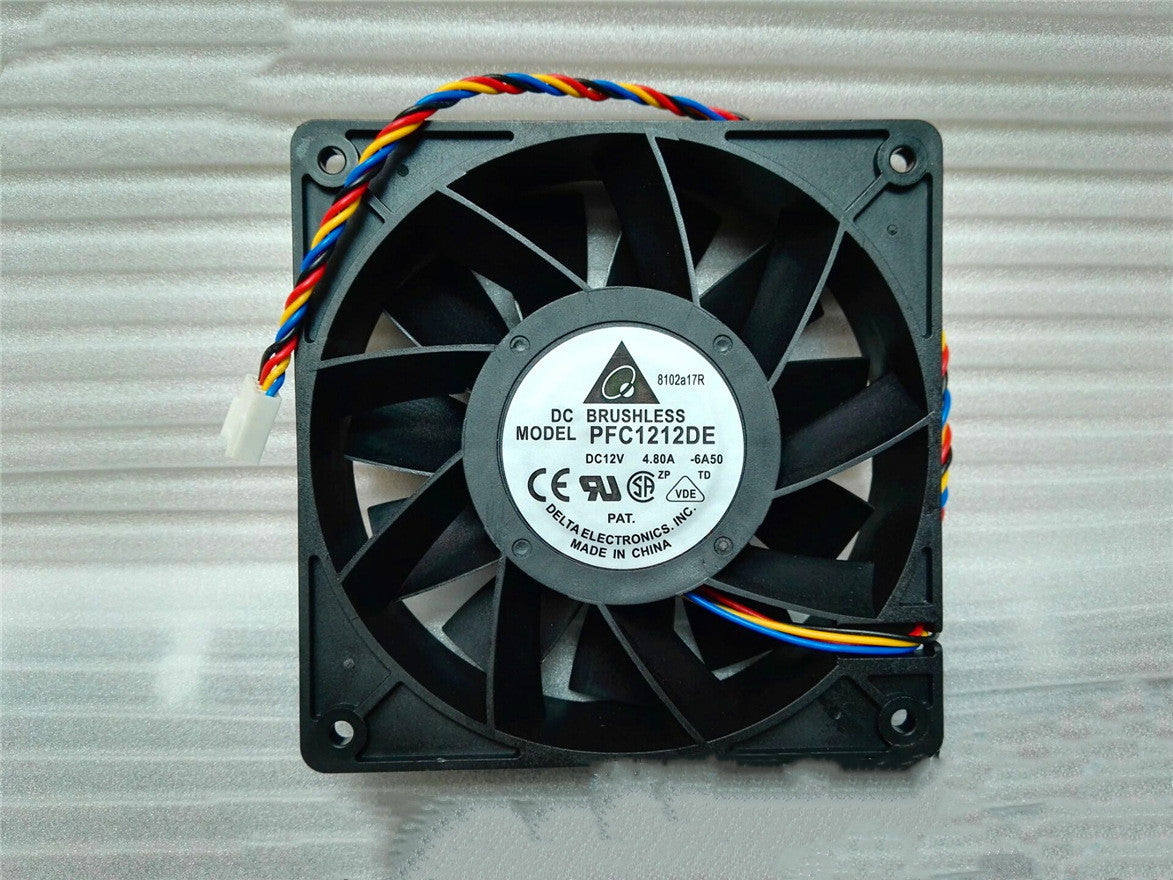

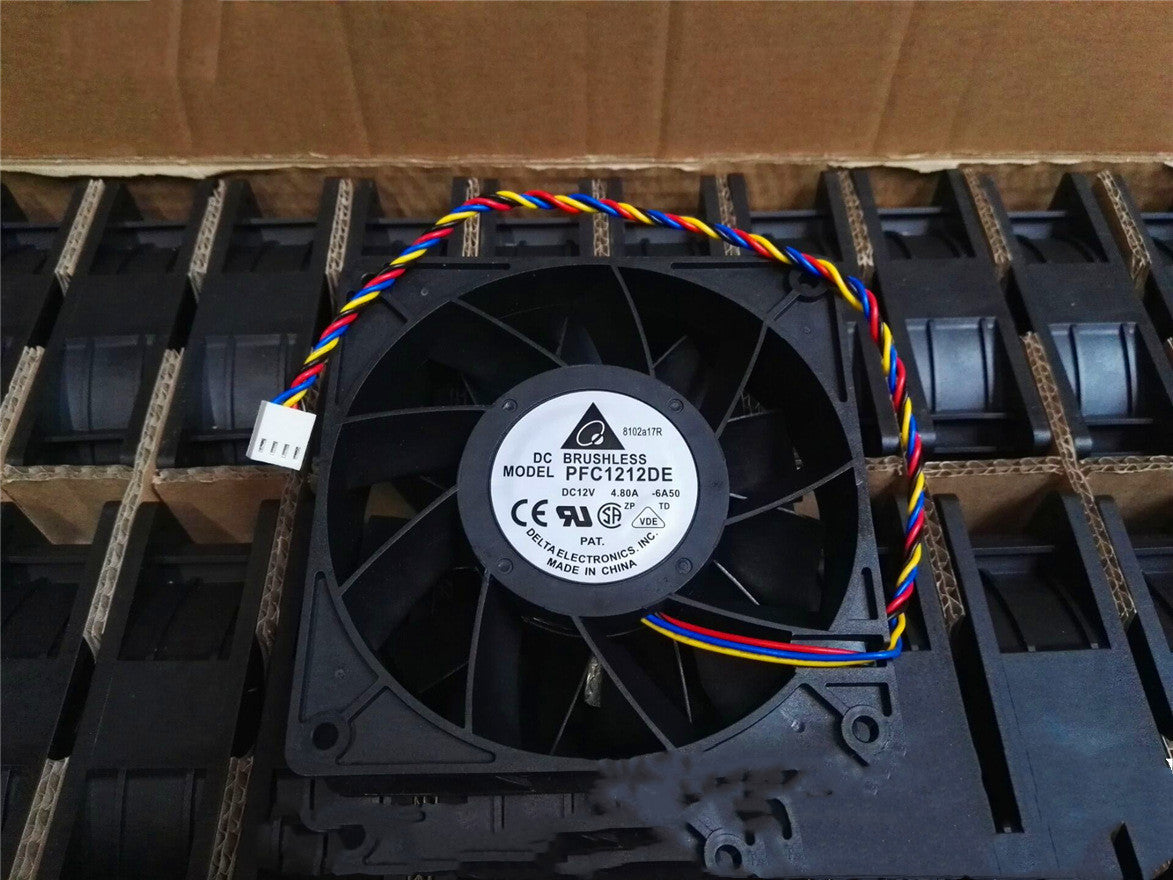

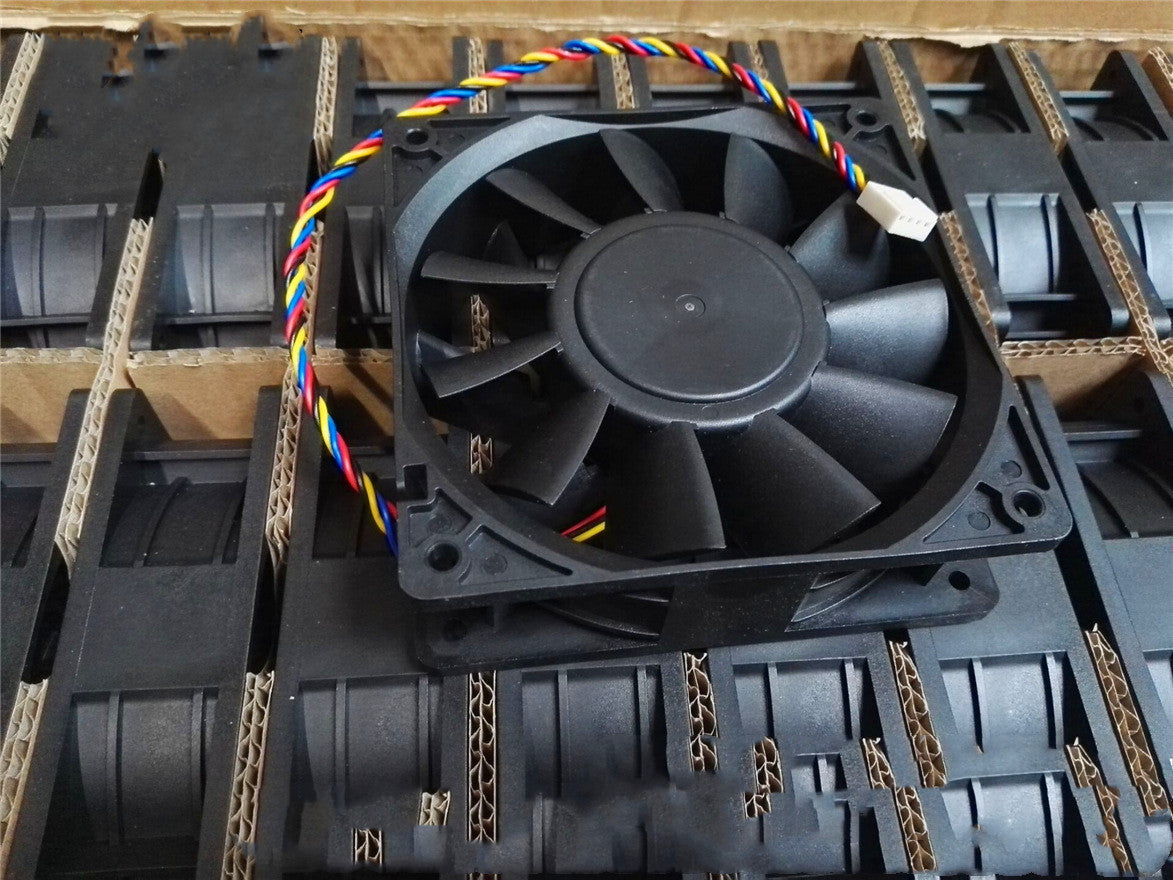

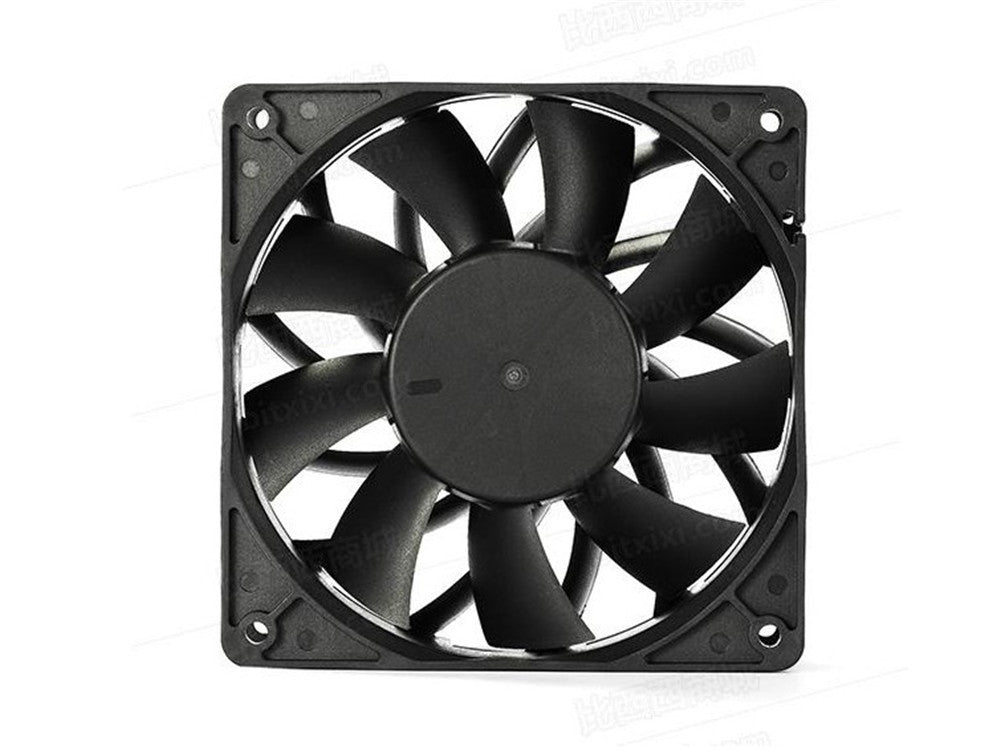

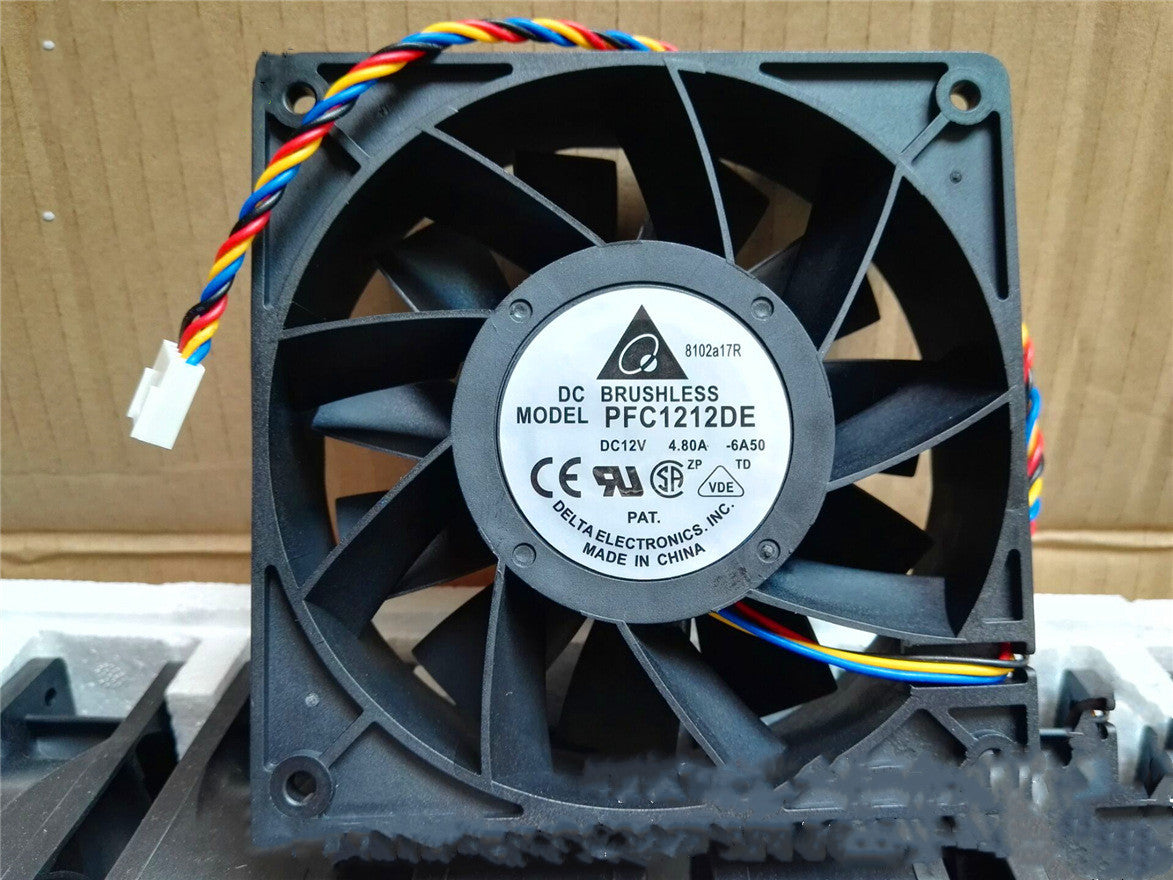

HKM-349395 120mm DC Cooling Fan with PWM Speed Control and High Air Volume - Model PFC1212DE
Introducing the HKM-349395 120mm DC Cooling Fan, model PFC1212DE, engineered for exceptional performance in cooling applications. This powerful fan is designed to enhance airflow in your system, providing an impressive air volume of 252.85 CFM, or 7.16 m³/min, ensuring your components stay cool even under demanding conditions.
Crafted with quality in mind, the fan features a robust one-shot injection molded frame made from PBT with 30% glass fiber, along with a flame retardant VO grade material. This construction not only enhances durability but also promotes safety during operation. With its precision ball bearings, the fan boasts a lifespan of up to 80,000 hours at a stable ambient temperature of 25 degrees Celsius.
The PFC1212DE operates at a voltage of DC12V, with a nominal current of 4.8A, resulting in a power consumption of 57.6W. It supports motherboard PWM speed regulation, allowing for adaptable speed control tailored to your needs. While the maximum speed can reach an impressive 5500 RPM when directly connected to a 12V power supply, the fan's speed can vary from 1050 RPM to 5500 RPM depending on the PWM adjustment settings.
Designed for versatility, the HKM-349395 fan is capable of withstanding a wide range of operating temperatures from -10 degrees Celsius to +70 degrees Celsius, making it suitable for various environments. With a noise level of 66.5 dB(A), this fan balances performance and acoustics, ensuring efficient cooling without overwhelming noise.
Perfect for high-demand applications, the HKM-349395 120mm DC Cooling Fan is an essential component for anyone seeking reliable cooling solutions. Its exceptional specifications and design make it an excellent choice for both enthusiasts and professionals. Upgrade your system’s cooling efficiency with the PFC1212DE today.
MODEL: PFC1212DE
Size: 120 × 120 × 38MM
Voltage: DC12V
Current: nominal 4.8A (12V rated current 2.98A,)
Air volume: 252.85CFM (7.16m3 / min)
Wind pressure: 1.412 in H2O (351.7 Pa)
Noise: 66.5 dB (A) Power: 57.6W
Speed regulation: support motherboard PWM speed regulation
Speed measurement: support
Interface: motherboard 4P
Line length: 35cm
Speed: 5500 RPM at 12V
Fan frame: one-shot injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fengye: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation direction: counterclockwise when viewed from the direction of the fan blades;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearings: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply; insulation resistance: greater than 500 megohms;
Withstand voltage: sink leakage current 0.5mA 500V / 1 minute;
Working life: 80,000 hours at an ambient temperature of 25 degrees.
In the case of motherboard PWM speed regulation, the speed adjusted to below 10% is 1050 rpm, and the fan increases by 405 rpm for each level adjusted from 10% to 100%. Due to the current limitation of the motherboard, it cannot reach 5500 rpm.
Directly connected to the power supply 12V positive and negative 2 pole power supply, can reach the maximum speed.
