Electric Scooters >>

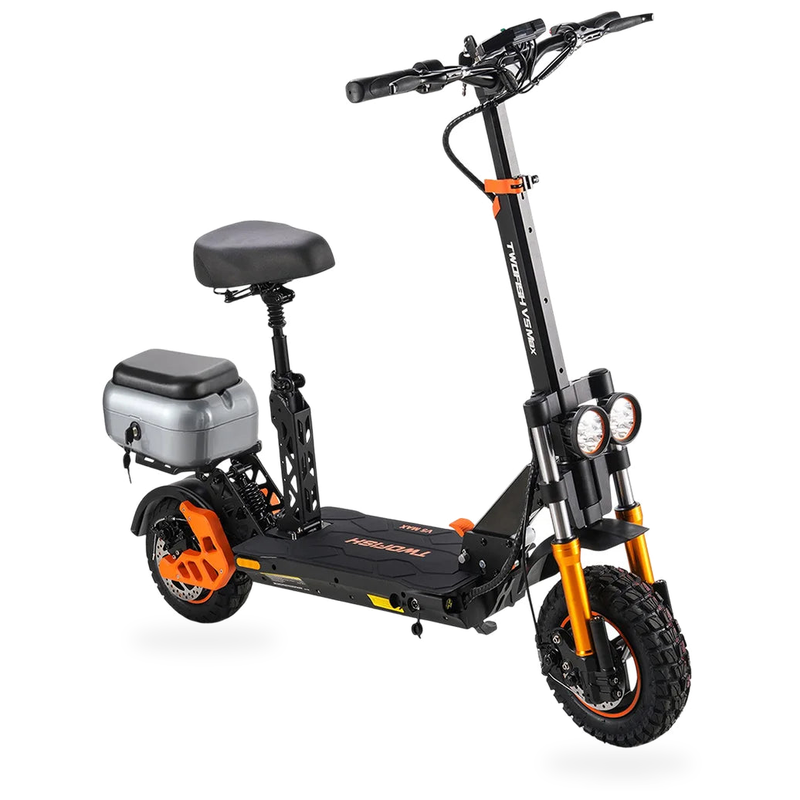

HKM-4594593 Off-Road Folding Electric Scooter with Seat, 800W Motor (1000W Peak), 48V 18Ah Battery, 28 mph, 11/10 in Tires
HKM-4594593
Long-Range Off-Road Scooter with Seat
The HKM-4594593 is an off-road folding scooter with a seat, built around an 800 W motor (1000 W peak) and a 48 V 18 Ah pack (864 Wh) that returns 18.6-28 mi (30-45 km) per charge. Front 11 in and rear 10 in tubeless off-road tires with dual suspension take on gravel and broken pavement, a comfort seat and rear trunk come standard, and dual disc brakes plus a multi-light system keep it street-ready. At about 77 lb (35 kg) it is built for the long way home.
Key Features
Eight details that make the HKM-4594593 a dependable daily ride.
800 W Motor, 1000 W Peak
The rear hub motor is rated 800 W with peak output to 1000 W and 7.5 N.m of torque, pulling climbs up to about 15-20 degrees and holding 28 mph (45 km/h) on the open stretch.
48 V 18 Ah Pack (864 Wh)
The 48 V 18 Ah lithium pack stores 864 Wh - well above the commuter norm - and returns 18.6-28 mi (30-45 km) per charge with a 6-8 hour full recharge.
11/10 in Off-Road Tires
Front 11 in and rear 10 in tubeless off-road tires, 3.5 in wide, grip gravel, hardpack, and broken pavement with a deeper cushion than any city tire.
Dual Disc Brakes
Disc brakes on both wheels give firm, even stopping at speed and hold up on the long descents where lesser setups fade.
Seat and Rear Trunk Standard
A removable seat with its own pole and a lockable rear trunk ship in the box, so the long run carries groceries or a helmet without a backpack.
Multi-Light System
Dual front headlights, dual front and rear spotlights, and an integrated taillight keep you seen from every angle after dark - all powered from the main pack.
Folds for Storage
The stem folds to 50.4 x 23.6 x 19.9 in (128 x 60 x 50.5 cm) for the trunk or a corner of the garage.
265 lb Load, Fits 4'11"-6'3"
The alloy-and-steel frame carries up to 265 lb (120 kg) with an adjustable-position seat, fitting riders from about 4 ft 11 in to 6 ft 3 in.
Overview
Built for the loop that leaves the pavement.
The HKM-4594593 is a seated off-road scooter built for the route that leaves the smooth pavement behind. An 800 W motor (1000 W peak) and a 48 V 18 Ah pack (864 Wh) return 18.6-28 mi (30-45 km) per charge, while front 11 in and rear 10 in tubeless off-road tires with front hydraulic and rear spring suspension keep gravel and broken blocks from reaching your hands. Dual disc brakes, a multi-light system, an LCD readout, and a comfort seat with rear trunk come standard, and the stem folds flat for storage.
Smooth Over Everything
Comfort you feel before you see it.
Front hydraulic and rear spring suspension under tubeless off-road tires smooths the small stuff, so the ride on the HKM-4594593 stays quiet over gravel, broken pavement, and curb cuts. We would rather over-build what you cannot see than under-deliver what you can. The finish is the kind you notice with your hands before your eyes.
Full Specifications
Measurements are shown in US customary units first, with metric equivalents in parentheses.
Battery, Range, and Charging
A big pack for the long way home.
The 48 V 18 Ah pack holds 864 Wh, well above the 400-600 Wh typical on commuter scooters, so the quoted 18.6-28 mi (30-45 km) range holds up on real routes. Real-world range depends on rider weight, speed mode, terrain, and tire pressure. Cold below 40 F trims capacity 10-20 percent, recovering as the pack warms. A full charge takes 6-8 hours with the supplied charger, so an overnight top-up has the scooter ready each morning.
Daily Use & Care
A short weekly routine keeps the ride quiet and the range where it should be.
Tire pressure sets the character of the ride. Run the upper half of the sidewall range on pavement for lower rolling resistance and longer range, and drop toward the lower half on gravel so the tubeless casings can grip.
Wipe the frame and deck with a damp cloth after riding on salted roads or dusty trails. Road film attacks aluminum fasteners over time if it is left in place.
Check the axle hardware, stem clamp, and seat post clamp before the first ride of each week. Off-road vibration works fasteners loose faster than most riders expect.
Keep the folding mechanism clean and check that it latches fully every time you raise the stem. A half-closed latch is a safety issue, not a rattle to ignore.
Inspect disc brake pad thickness monthly. Off-road riding wears pads faster than pavement; replace the friction material once it is under 1 mm.
Charge indoors at room temperature and unplug once the charge is complete rather than leaving the scooter connected for days at a time.
Keep the charge-port cover closed when the scooter is parked outside so moisture stays out of the connector.
Spin both wheels weekly and check that nothing rubs and that the off-road tires seat evenly. Catching a wobble early is a five-minute fix instead of a wheel replacement.
What’s in the Box
Everything needed to get riding, right out of the box.
1 x HKM-4594593 Folding Electric Scooter
Arrives mostly assembled; raise the stem, lock the folding latch, and check the brakes
1 x 48 V Charger
Charges a full pack in 6-8 hours from a standard outlet
1 x Seat with Seat Pole
Padded seat and adjustable mounting pole
1 x Rear Trunk
Lockable cargo box for helmets and groceries
1 x Toolkit
Hex wrenches and hardware for fitting and adjustments
1 x User Manual
Safety, setup, and care instructions
Why Choose the HKM-4594593
Eight reasons it earns its place by the door.
Efficient by Design
An 864 Wh pack paired with an efficient brushless motor favours distance over bulk. The HKM-4594593 covers the long loop on one charge, with a full recharge costing a few cents of electricity.
Sit or Stand
Ride seated with the standard comfort seat for the long runs, or remove it in seconds and stand for control in the tight stuff. Most riders mix both on the same route.
Torque for the Hills
Rated 800 W with 1000 W peaks and 7.5 N.m of torque, the hub motor climbs grades the factory rates to about 15-20 degrees - no chain, no belt, nothing to service.
Built Heavy, Rides Light
77 lb is real scooter weight, but the one-step fold and the trunk-friendly footprint mean it still lives in a trunk or a corner, not a garage you never open.
No Fuel, No Fees
A full 864 Wh charge costs a few cents of home electricity and covers 18.6-28 mi. There is no fuel, no oil change, and no parking to hunt for at the far end of the ride.
Everyday Practicality
Dual disc brakes, a multi-light system, off-road tires, dual suspension, a seat, and a rear trunk make a scooter useful for transport, not just recreation. The HKM-4594593 carries all of it as standard.
Confident Control
Dual disc brakes and wide tubeless off-road tires put grip under your hands on wet pavement and loose gravel alike. The scooter slows the way you ask, every time.
Ready Out of the Box
Scooter, seat, trunk, charger, toolkit, and manual arrive together. Raise the stem, fit the seat, charge the pack, and the first ride is minutes away.
Made to Disappear Into the Day
The ride you reach for without a second thought.
A one-step folding stem means the HKM-4594593 still disappears when the ride is over - into the trunk, against the wall by the door. The details land where your hands expect them, so the day asks nothing extra of you.
Controls & Indicators
What each control on the HKM-4594593 does.
Power Button
Hold to switch the system on and off; the LCD confirms the power state
LCD Display
Voltage, battery level, mileage, and speed shown in real time
Speed Modes
Three modes (25/38/45 km/h) to match the terrain and the day's route
Throttle
Proportional thumb throttle for smooth, controlled acceleration
Battery Gauge
State-of-charge readout so you always know the ride you have left
Lighting Control
Switch the dual headlights and spotlights on for dusk and evening rides
Folding Latch
Close and lock before every ride; the latch carries all steering and braking loads
Frequently Asked Questions
Quick answers about the HKM-4594593.
How much assembly is required out of the box?
The scooter arrives mostly assembled. What remains is raising the stem, closing and locking the folding latch, fitting the seat and rear trunk, checking tire pressure and brake alignment, and giving the pack a full charge. Budget 30-45 minutes, most of it waiting for the charger.
What range should I actually plan for?
Plan for 18.6-28 mi (30-45 km) on the 18 Ah pack. Off-road riding, hills, cold weather, heavier riders, and low tire pressure all pull the figure down; smooth pavement and a gentle throttle push it back up.
How long does the battery take to charge?
About 6-8 hours with the supplied charger from a fully empty pack. Partial top-ups take proportionally less time, and the pack does not need to be run down before recharging.
Can it really go off-road?
Yes - within reason. The 11/10 in tubeless off-road tires and dual suspension are built for gravel paths, hardpack, and broken pavement. Deep mud, sand, and very steep loose grades ask for care and a slower pace.
Is the seat removable?
Yes. The seat and its pole lift off in seconds if you would rather stand, and the rear trunk stays on for cargo.
Is a license or registration required?
Rules vary by state and by city. Many US jurisdictions treat electric scooters like bicycles with a speed cap, but some require permits or restrict where they may be ridden. Confirm local law before riding on public roads.
What is it like at 28 mph?
Fast. At 28 mph (45 km/h) stopping distance and wind matter, so wear a full helmet, check both disc brakes before every ride, and save the top mode for open stretches.
What about hills?
Factory data rates climbing at about 15-20 degrees. The 1000 W peak pulls moderate hills at speed; expect range to drop on hilly routes, which is normal and recovers on the flats.
Quick Troubleshooting
Common issues and what to check first.
The motor does not engage.
Confirm the power button is on, the pack has charge, and the LCD is showing data. Check that the folding latch is fully closed - some systems disable drive if the stem is not locked. If it still will not engage, note the conditions and contact support.
Range dropped noticeably compared with when it was new.
Check tire pressure first; a soft off-road tire on pavement is the most common cause. Then consider temperature, because cold reduces available capacity temporarily. Frequent hill climbs and full-throttle starts also pull range down.
The brakes feel weak or the lever pulls to the grip.
Check the pad thickness and cable tension first. Disc brakes bed in over the first rides; if the lever still feels soft after bedding in, adjust the cable or have the caliper checked - do not continue with compromised brakes.
There is play at the folding joint.
Confirm the folding latch is fully closed and locked. If play persists with the latch locked, stop riding and have the mechanism inspected - the stem carries all steering and braking loads.
There is a rattle from the front end over bumps.
Check that the axle hardware is tight and the front wheel is seated. Suspension components settle in the first weeks; a persistent knock after a hardware check should be inspected before the ride continues.
The display will not power on.
Confirm the pack has charge and all connectors are seated. Switch the system off, wait 30 seconds, and switch it back on. If the display stays dark, note the conditions and contact support.
Certifications & Standards
Documented design and build, ready for daily service.
864 Wh Battery Pack
48 V 18 Ah lithium-ion standard - well above the commuter-scooter norm.
Off-Road Tire Standard
Front 11 in / rear 10 in tubeless off-road tires, 3.5 in wide, fitted as standard.
Dual Suspension Standard
Front hydraulic plus rear spring suspension fitted as standard.
Multi-Light System
Dual headlights, dual spotlights, and taillight included as standard equipment.
Seat and Trunk Included
Comfort seat with pole and a rear trunk ship with the scooter, not as add-ons.
LCD Instrumentation
Voltage, battery, mileage, and speed readouts standard on the handlebar.
Pre-Ride Safety Checklist
Run through these before every ride.
Check tire pressure and set it for the surface you plan to ride; pressure has more effect on range and grip than any other single adjustment you can make in 30 seconds.
Squeeze both brake levers. They should firm up well before touching the grip, with no sponginess or long lever travel.
Confirm the pack has the charge you expect and the LCD shows it.
Spin both wheels and check that nothing rubs and the off-road tires seat evenly.
Check that the axle hardware is tight and that there is no play at the handlebar or folding joint when you rock the scooter with the front brake applied.
Test the throttle and brake response at walking pace in a clear, traffic-free area before riding in traffic.
Switch on the headlight system if you will be riding near dusk, and wear a helmet rated for the speed this machine reaches.
Confirm the speed mode on the LCD is the one you expect before you set off, so the first throttle input is not a surprise.
Service & Policies
Every HKM-4594593 is backed by coverage designed to protect your investment.
Free Shipping on All Orders
Every order ships free. Handling Time: 0-1 business days (Monday to Friday). Transit Time: 2-5 business days (Monday to Friday). A tracking number is emailed as soon as the parcel leaves our warehouse.
180 Days Purchase Protection
Your purchase is protected for 180 days from the delivery date against manufacturing defects and damage in transit. If something arrives wrong, we make it right.
30 Days Money-Back Guarantee
Not completely satisfied? Request a return within 30 days of delivery for a full refund. We keep the process simple and hassle-free.
24 Months Warranty Service
The product is covered by a 24-month warranty from the delivery date against manufacturing defects. Coverage includes parts and labor; normal-wear items are excluded.
Important Safety Notes
Read before the first ride.
This scooter is rated at 28 mph (45 km/h) - a speed that demands respect. Read the manual first and practise throttle and braking in an open, traffic-free area. Leave extra room for braking, since stopping distance grows fast with speed and load. Wear a helmet every ride; a full-face or motorcycle-rated helmet is wise at 28 mph. Do not exceed the 265 lb (120 kg) load limit, including rider and cargo. Confirm local law before riding on public roads - many jurisdictions restrict scooters above 20 mph. Bed the brakes in with 10-15 progressive stops over the first rides. Close and lock the folding latch fully before every ride, and never ride with the stem unlocked. Never ride through water deep enough to reach the battery or motor. Charge only with the supplied charger, indoors and attended. Never open, puncture, or modify the pack. Slow down substantially on wet surfaces, loose gravel, and steep descents.
HKM-4594593 - 800 W rear hub motor (1000 W peak) - 48 V 18 Ah lithium-ion (864 Wh) - 28 mph (45 km/h) top speed - 18.6-28 mi (30-45 km) range - front 11 in / rear 10 in tubeless off-road tires - dual disc brakes - front hydraulic and rear spring suspension - seat and rear trunk standard - 265 lb (120 kg) load capacity. Specifications are for reference; actual performance varies with rider, terrain, tire pressure, and temperature. This page describes the product only and is not legal advice regarding vehicle classification - confirm local regulations before riding on public roads.
