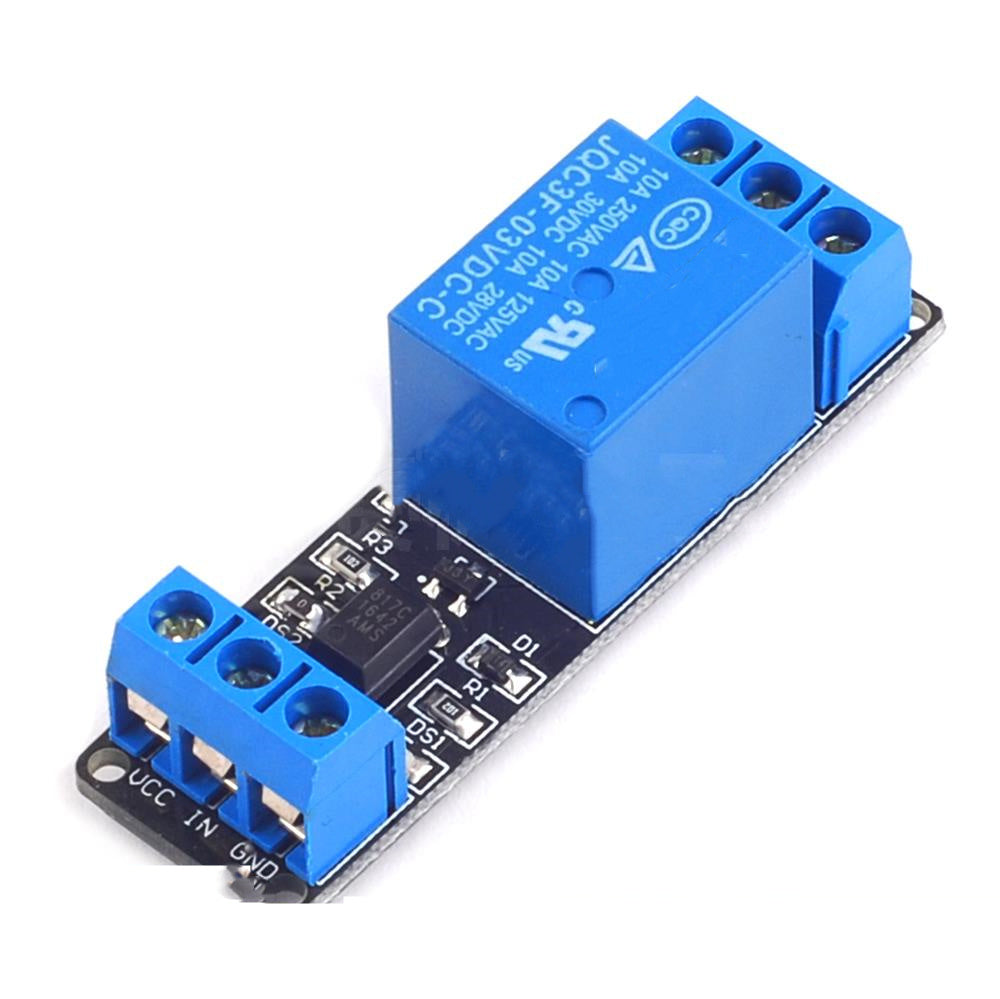

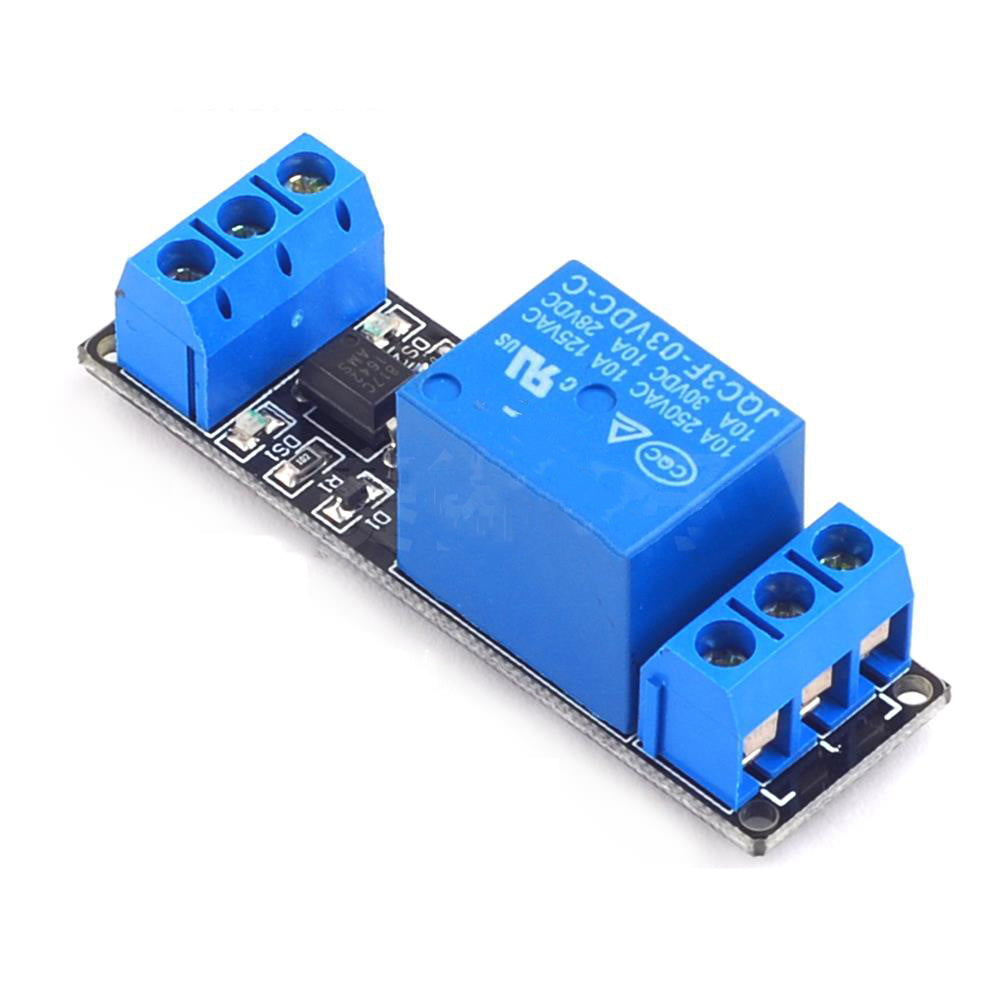

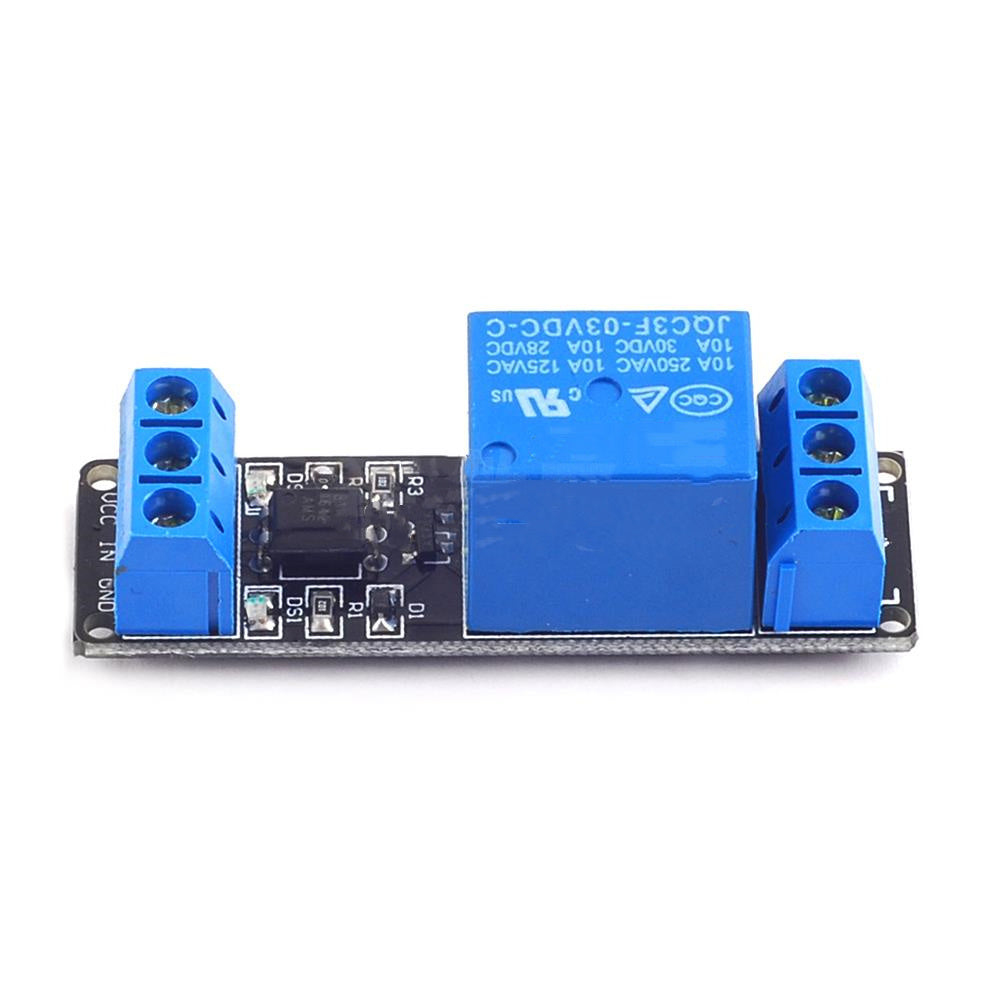

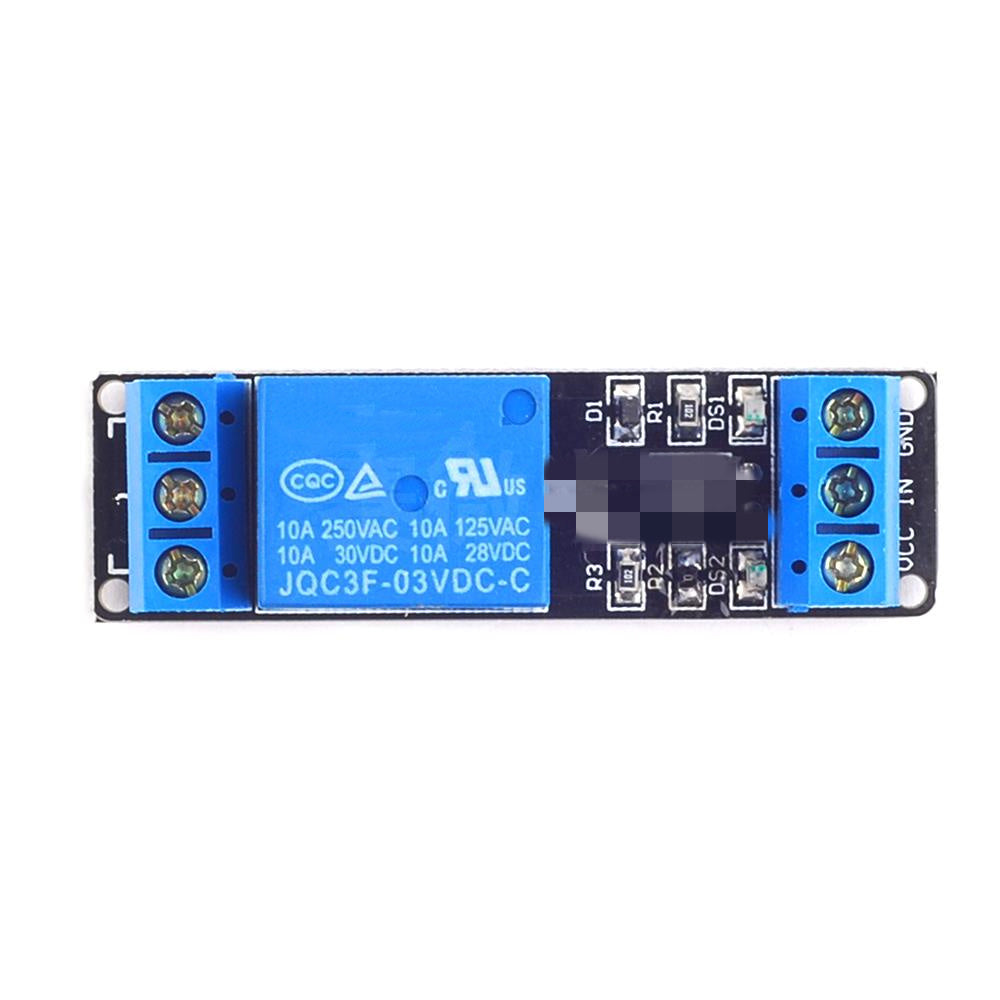

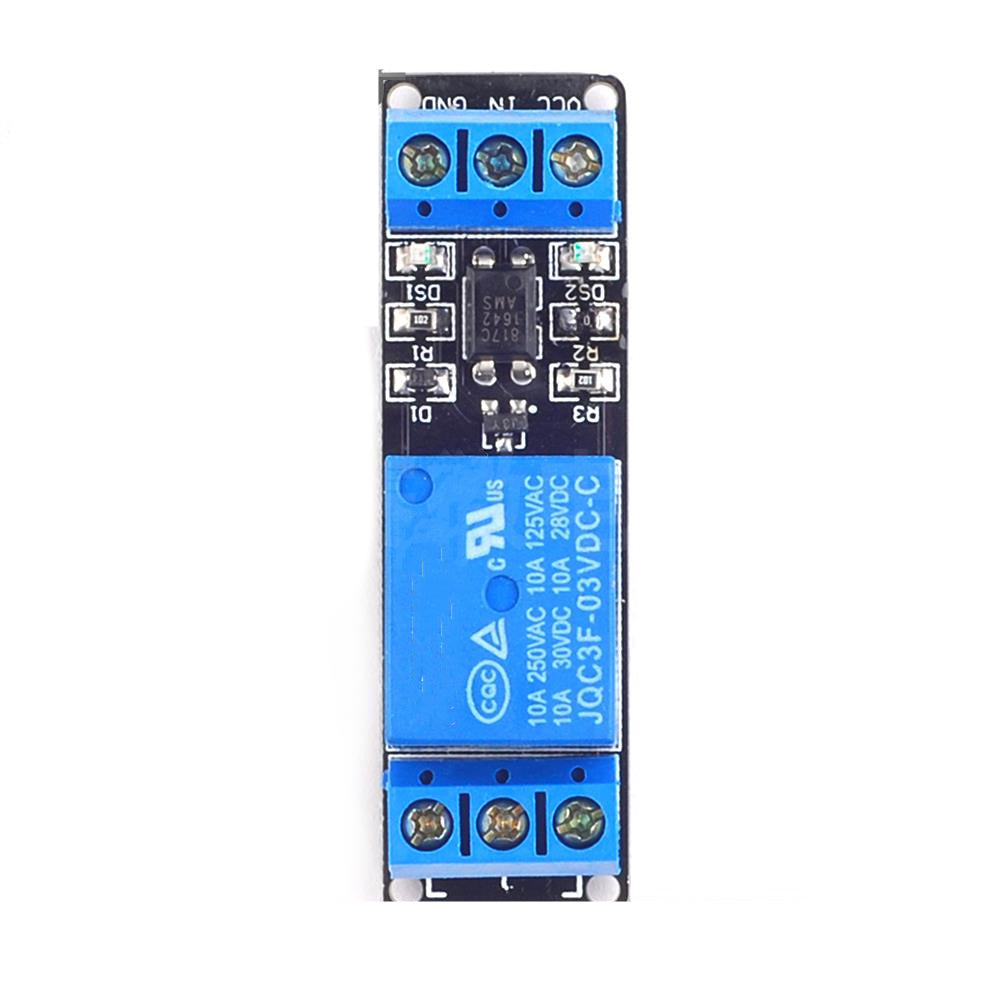

HKM-464659 24V 1 Channel Relay Module for Arduino with High Load Capacity and Isolation Features
Introducing the HKM-464659 24V 1 Channel Relay Module designed specifically for Arduino enthusiasts and DIY projects. This reliable relay module combines high load capacity with essential isolation features, making it a perfect choice for various applications.
This model operates with a direct current power supply and supports voltages up to 36V. The HKM-464659 is equipped with a premium quality relay that provides a maximum load of AC 250V/10A and DC 30V/10A. With its patch photocoupling isolation, you can expect strong driving ability and stable performance, ensuring your projects run smoothly.
Safety is paramount, and this relay module boasts a fault-tolerant design. Even if the control line is interrupted, the relay will remain inactive, preventing unintended operations. For user-friendly operation, the module features clearly marked wiring terminals that simplify connection to your components.
Key features of the HKM-464659 include:
- Power indicator (green) to illustrate that the module is powered
- Relay status indicator (red) to indicate when the relay is activated
- Three interface connections:
- VCC to connect to the positive pole of the power supply (3.3V)
- GND to connect to the negative pole
- IN for low-level control of relay activation
The relay output consists of:
- Normally Open (NO) interface, which connects to COM upon activation
- Common (COM) interface for relay operations
- Normally Closed (NC) interface, which connects to COM before activation
The HKM-464659 24V 1 Channel Relay Module is an essential component for those seeking to enhance their electronic projects with efficiency and reliability. Whether you're integrating it into a home automation system or experimenting with new electronic designs, this module offers the versatility and safety features you need. The packing list includes one relay module, ready for seamless installation and use.
Product information:
Model: 1 way
Power supply: direct current
Color category: BESTEP
Voltage: ≤36V(inclusive)
Module description:
Module adopts authentic high quality relay, normally open interface maximum load: AC 250V/10A, straight 30V/10A;
Using patch photocoupling isolation, strong driving ability, stable performance; Trigger current 5mA;
Fault tolerant design, even if the control line is broken, the relay will not operate;
Power indicator (green), relay status indicator (red)
Interface design humanized, all interfaces can be directly connected through the wiring terminals, very convenient
Two module interface:
1. VCC: Connect to the positive pole of the power supply (3.3V)
2. GND: Connects to the negative pole of the power supply
3, IN: low level control relay suction
Relay output:
1. NO: normally open interface of relay, suspended before suction of relay, short connected with COM after suction
2, COM: relay public interface
3. NC: normally closed interface of relay, short connect with COM before relay closing, suspended after closing
Packing list:
Relay module *1
