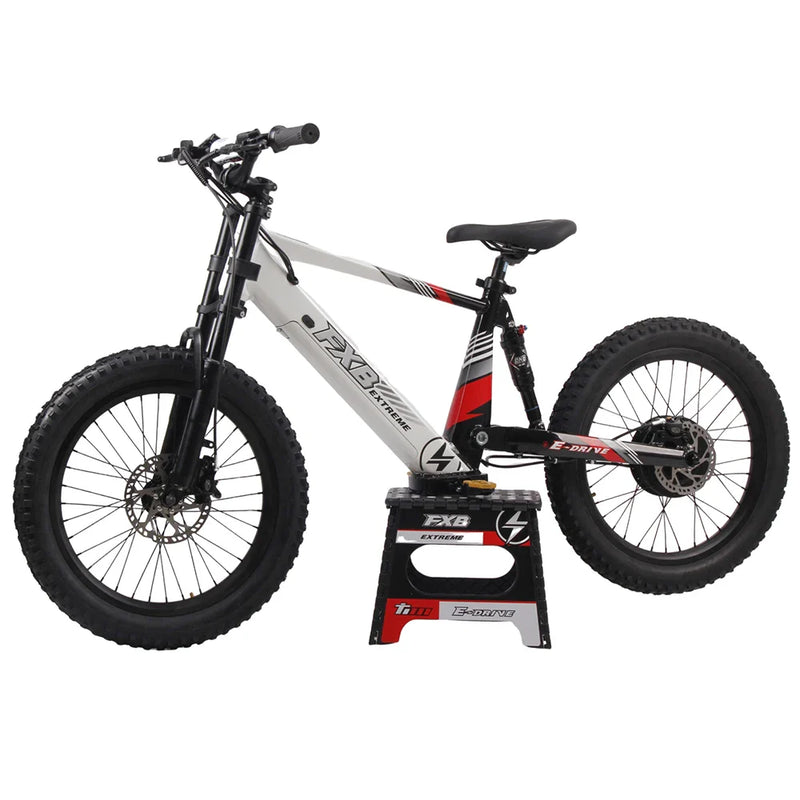

FXB06-20 Electric Balance Bike

Engineered for riders aged 13–14 — a 20-inch aluminum-frame electric mountain bike that merges rugged trail capability with refined on-road composure.

The FXB06-20 redefines what a youth electric balance bike can be. Built around a lightweight aluminum chassis and driven by a 36V brushless hub motor with 1200W peak output, it delivers responsive acceleration and confident handling across pavement, gravel, and singletrack. Three selectable levels of pedal assistance let riders tailor the experience to their skill, while the KENDA FAT off-road tires, hydraulic disc brakes, and DNM air-adjustable rear shock work in concert to provide stability, control, and all-day comfort.

Key Highlights

Motor & Power System

At the heart of the FXB06-20 lies a 36V brushless hub motor capable of delivering 1200W of peak output. Unlike brushed motors that rely on physical commutators and carbon brushes — which wear over time and generate friction — this brushless design uses electronic commutation to achieve higher efficiency, quieter operation, and a longer service life. The motor is integrated directly into the rear wheel hub, which simplifies the drivetrain, reduces maintenance points, and contributes to the bike's clean, streamlined aesthetic.

Three distinct levels of pedal assistance are available at the rider's fingertips. Level 1 provides a gentle boost ideal for cruising on flat pavement and conserving battery. Level 2 balances support and range for mixed-terrain riding. Level 3 unlocks the full 1200W potential — delivering robust torque for steep climbs, quick acceleration from a standstill, and spirited trail riding. This graduated system allows young riders to progressively build skill and confidence while staying in full control of the bike's behavior.

Battery & Range

The FXB06-20 offers two lithium battery configurations — 7.5AH and 10.0AH — both built on high-energy-density lithium-ion cell technology. Lithium chemistry was chosen for its superior energy-to-weight ratio compared to older sealed lead-acid (SLA) alternatives: a lithium pack typically weighs less than half as much while delivering the same usable energy, which directly benefits handling, acceleration, and overall ride quality for a youth-oriented bike.

With the 7.5AH battery, riders can expect approximately 9.3 miles (15 km) of range, translating to roughly 60 minutes of assisted riding under mixed conditions. The 10.0AH pack extends that to about 18.6 miles (30 km) and up to 90 minutes of ride time. Actual range varies based on terrain, assist level selection, rider weight, tire pressure, and ambient temperature — factors common to all electric bicycles. The battery is housed in a discreet, lockable compartment integrated into the frame, maintaining the bike's clean lines while offering protection from trail debris and the elements.

Frame & Construction

The FXB06-20 frame is fabricated from lightweight aluminum alloy — a material long favored in the cycling industry for its excellent strength-to-weight ratio, natural corrosion resistance, and ride-tuned compliance. The frame geometry has been carefully proportioned for riders aged 13 to 14, with a lowered standover height that makes mounting and dismounting intuitive, and a balanced weight distribution that inspires confidence whether cornering on asphalt or navigating rooty trail sections.

Aluminum's inherent rust resistance means the frame holds up well against rain, mud, and humidity without the need for additional protective coatings that add weight. The welds are smooth and reinforced at high-stress junctions — the head tube, bottom bracket, and dropouts — ensuring long-term structural integrity. At 20 inches, the wheel size strikes an optimal balance: large enough to roll over obstacles with composure, yet small enough to keep the bike agile and easy to maneuver for young riders still developing their off-road skills.

KENDA FAT Off-Road Tires

Traction is the foundation of any off-road riding experience, and the FXB06-20 is equipped with 20 × 2.6 inch KENDA-brand FAT tires that deliver exactly that. With a width of 2.6 inches (approximately 66 mm), these tires occupy the "plus" category — wider than standard mountain bike tires but not as extreme as full fat-bike rubber. This width provides a significantly larger contact patch compared to conventional 1.9–2.2 inch tires, translating to enhanced grip on loose surfaces such as gravel, sand, and damp earth.

The aggressive tread pattern features widely spaced, multi-directional knobs that bite into soft terrain while shedding mud efficiently — a design borrowed from enduro and trail motorcycle tires. On hardpack and pavement, the center ridge of the tread reduces rolling resistance, preserving battery range during transitions between trail sections. KENDA's rubber compound balances grip and durability, resisting premature wear even when ridden on abrasive surfaces like rocky singletrack or coarse asphalt. The 20-inch diameter keeps rotational inertia low, which aids acceleration and makes the bike feel nimble in tight switchbacks.

Hydraulic Disc Braking System

Stopping power is non-negotiable, especially for young riders building confidence at higher speeds and on variable terrain. The FXB06-20 is fitted with hydraulic disc brakes on both the front and rear wheels — a specification typically found on adult performance mountain bikes. Unlike mechanical (cable-actuated) disc brakes, which rely on a steel cable that can stretch and develop friction over time, hydraulic systems use incompressible brake fluid to transmit force from the lever directly to the caliper pistons. This results in a firmer, more consistent lever feel and requires less finger effort to achieve maximum braking force.

The self-adjusting nature of hydraulic calipers means that as brake pads wear, the pistons automatically advance to maintain a consistent pad-to-rotor gap — no manual barrel adjuster tweaking required. The rotors are sized appropriately for a 20-inch wheel platform, providing ample heat dissipation during prolonged descents to prevent brake fade. In wet or muddy conditions, the open design of the disc rotor sheds water quickly, maintaining predictable bite point and stopping distance when it matters most.

DNM Air Adjustable Rear Shock

The FXB06-20's rear suspension is anchored by a DNM-brand 200mm (approximately 7.9 inches) air-adjustable shock featuring a separation piston design. In a conventional shock absorber without a separation piston, oil and air can mix under aggressive compression, leading to cavitation — tiny air bubbles that reduce damping consistency and create a "spongy" feel. The separation piston creates a physical barrier between the gas chamber and the oil chamber, maintaining consistent damping performance even during rapid, repeated compression cycles on rough terrain.

Air adjustability means the spring rate can be fine-tuned simply by adding or releasing air pressure through a standard shock pump (Schrader valve). This allows parents and riders to set sag precisely — typically 25–30% of total travel — for the rider's weight, ensuring the suspension is neither too stiff (which compromises small-bump sensitivity) nor too soft (which risks bottoming out on larger impacts). The 200mm of travel provides ample cushioning for trail roots, rocks, and drops, contributing to a smoother, less fatiguing ride on extended outings.

Speed, Control & Ride Modes

With a maximum assisted speed of up to 24.9 mph (40 km/h), the FXB06-20 delivers an exhilarating ride that remains within manageable limits for young riders under supervised conditions. Riders and parents should note that local regulations governing electric bicycle speed and classification vary by jurisdiction — some regions may require helmet use, restrict certain classes of e-bikes from specific trails, or impose minimum age requirements. Always verify and comply with applicable laws in your area.

The three selectable assist levels function not merely as speed limiters but as distinct ride profiles. Level 1 emphasizes efficiency — ideal for learning fundamental handling skills and extending battery life on long family outings. Level 2 introduces a more responsive torque curve suitable for mixed-surface riding where occasional bursts of power are helpful. Level 3 engages the motor's full 1200W potential, transforming the bike into a capable trail machine that can tackle steep grades and accelerate briskly out of corners. The transition between levels is seamless, with no abrupt power surges that could unsettle the rider.

Safety-First Design Philosophy

Every aspect of the FXB06-20 has been evaluated through the lens of youth rider safety. The hydraulic disc brakes deliver predictable, fade-resistant stopping power. The FAT tire profile provides a larger contact patch that resists washouts on loose corners. The aluminum frame's geometry keeps the center of gravity low, reducing the likelihood of tip-overs during low-speed maneuvering. The DNM shock's separation piston design prevents the cavitation that can cause sudden loss of damping on consecutive impacts. Together, these systems create overlapping layers of passive safety — the kind that works silently in the background, allowing young riders to focus on the trail ahead.

As with any bicycle — electric or otherwise — proper protective gear is essential. Riders should always wear a properly fitted helmet, and consider additional protection such as gloves, knee pads, and elbow guards when riding off-road. Regular pre-ride inspections of brakes, tire pressure, and quick-release mechanisms are strongly recommended to ensure every ride begins with the bike in optimal condition.
