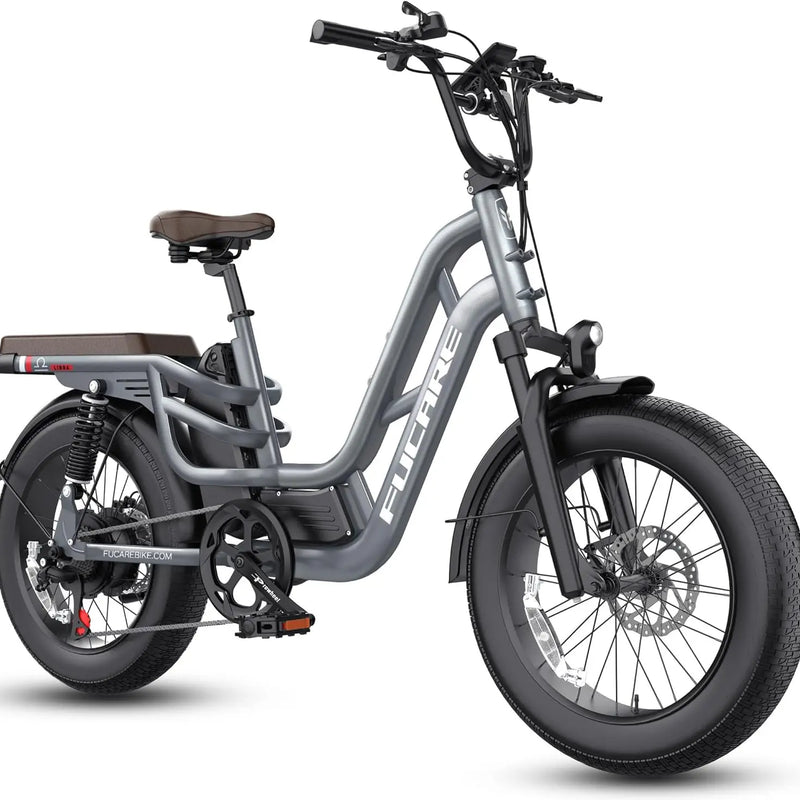

A 750 W (1200 W peak) brushless rear hub motor drives the HKM-9851091. There is no gearbox or second chain between the motor and the road, so drive losses stay low and routine maintenance comes down to keeping the axle hardware torqued and the drivetrain clean.

The 48 V 20 Ah pack stores 960 Wh of usable energy, which is what makes the quoted 31-50 mi (50-80 km) window realistic rather than optimistic. Charging from empty takes 6-7 hours on the supplied charger, and partial top-ups take proportionally less - there is no need to run the pack down before plugging in. A battery management board supervises cell balance, over-charge, over-discharge, and temperature so the pack is protected during both fast riding and long storage.

The front fork is hydraulically damped with a mechanical lockout, so it soaks up broken pavement and gravel when open and firms up for efficient pedalling when locked. A coil shock behind the seat tube handles what reaches the rear wheel. On a 20 in wheel, where each pothole is a larger fraction of the wheel diameter, that rear travel makes a bigger difference than it would on a 29 in bike.

Sealed hydraulic lines actuate both calipers, so lever effort stays light and predictable when the rotors heat up on a long descent and there are no cables to stretch or corrode. Motor cut-off switches in both levers kill drive the instant either lever moves, which matters on a machine that reaches 28 mph.

A 52-tooth chainring feeds a 7-speed Shimano cassette through an index shifter, which keeps pedalling cadence usable from walking pace up to the top of the assisted speed range. The wide gear range is also what lets a heavier rider contribute on a 30 degree pitch instead of leaving the motor to carry the whole load and heat-soak the controller.

Run at low pressure the wide casing spreads rider and cargo weight across a large contact patch, so the bike stays planted on gravel, wet pavement, packed snow, and park paths where a 2 in commuter tire would skate. The same volume of air acts as an extra stage of suspension between the rim and the road.

The backlit color display shows speed, state of charge, assist level, trip distance, and odometer, and switches between mph and km/h in the settings menu. A 5 V 500 mA USB port on the display body charges a phone from the main pack, which matters on a long ride when navigation is draining the handset faster than a small power bank can refill it.

Sealed connectors and an IPX4 rating mean light rain and road spray are part of the design brief, not an emergency. Five selectable modes - throttle, pedal-assist, cruise, walk, and unpowered - cover everything from a hands-off cruise on a bike path to walking the bike up a footbridge ramp under its own power.

Nominal output is what the motor sustains all day; peak output is what gets you across an intersection or up a short ramp. The HKM-9851091 has 750 W of the first and 1200 W of the second, which is the combination that makes a heavy fat bike feel light from a standing start.

Expansion joints, sunken drain covers, brick lanes, and gravel shortcuts stop being obstacles when the fork and rear shock absorb what a rigid frame would pass straight to your wrists and spine. Lock the fork out on smooth tarmac and the same bike pedals efficiently.

Twist the throttle for immediate, clutch-free acceleration, or shift through the 7-speed Shimano drivetrain and pedal. Most owners mix both: throttle to pull away from a stop, gears and pedal-assist to stretch the range on the flat, and full power for the hills.

The motor lives inside the rear wheel hub. No mid-drive gearbox, no belt, and no extra chain sit in the drive path, so there is very little to service and the ride stays notably quiet even at full power.

A full 960 Wh charge costs a few cents of household electricity and covers 31-50 mi (50-80 km). There is no fuel, no oil change, and no emissions test. For trips under 10 mi the bike is usually quicker door to door than a car once parking is counted, and it removes a daily short-trip journey from the vehicle that costs the most to run.

The dropped top tube and 20 in wheels put the standover height low enough that most riders between 5 ft 2 in and 6 ft 4 in can flat-foot the ground at a stop. That matters in traffic, in work clothes, and for anyone who would rather not swing a leg over a high frame with a load on the rack.
