Electric Wheelchairs >>

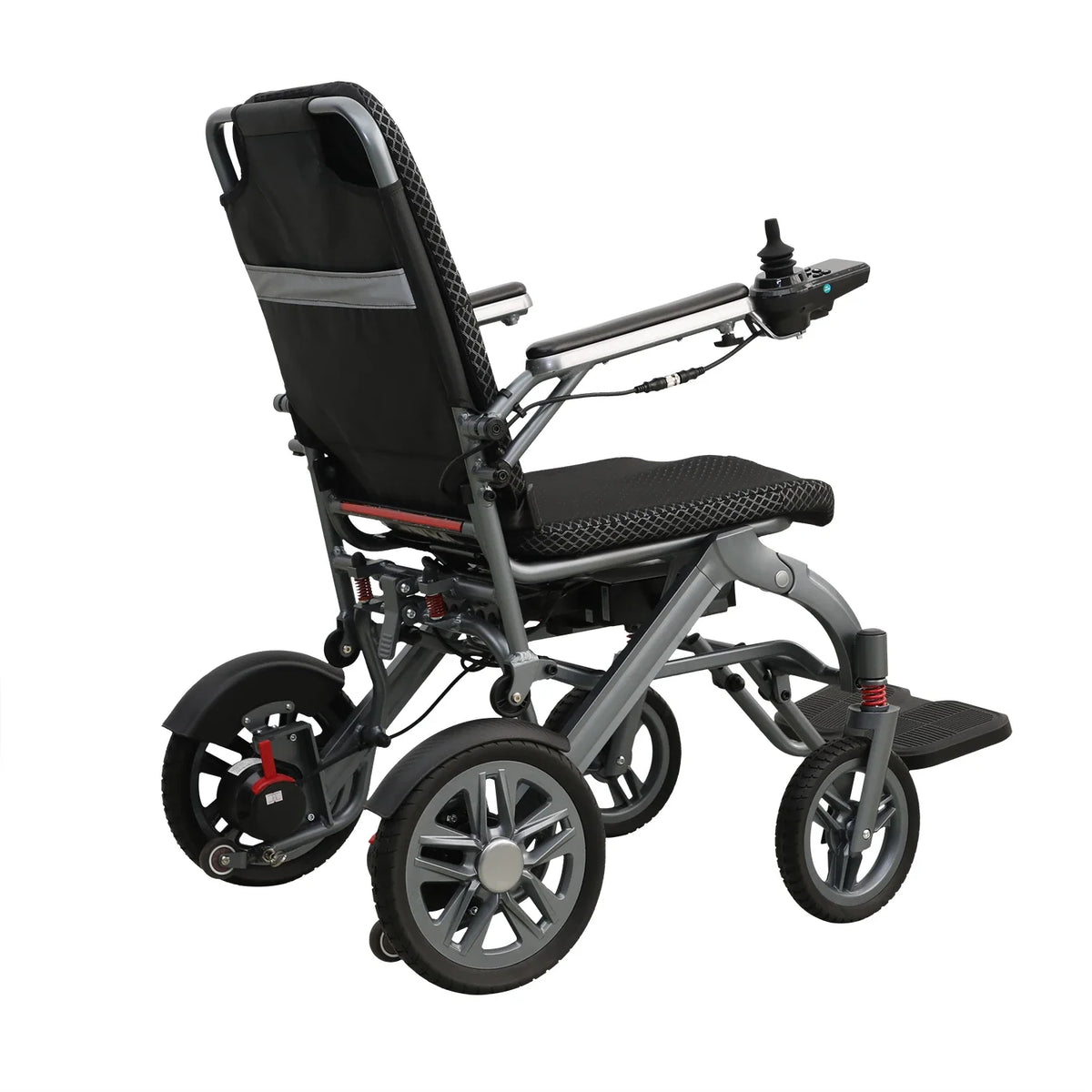

HKM-996371 Folding Electric Wheelchair with Dual 200W Motors and 12Ah Lithium Battery, Aluminum alloy Frame, 220 lb Load Capacity, 3.7 mph Top Speed
HKM-996371 Folding Electric Wheelchair
The HKM-996371 is a folding electric wheelchair engineered for reliable daily mobility - indoors, on neighborhood sidewalks, and on paved park paths. Dual 200W motors share the drive load for stable traction, and the lithium-ion battery pack delivers up to about 9.3 mi of riding range per charge. The aluminum alloy frame supports riders up to 220 lb and folds in seconds to a compact package that fits most car trunks. A handheld remote control round out a chair designed to make every trip easier for the rider.
Overview
The HKM-996371 is a folding electric wheelchair engineered for riders who need reliable powered mobility without the bulk of a traditional power chair. The aluminum alloy frame keeps net weight around 40 lb (18 kg) and the one-touch fold collapses the chair into 16.1 x 22.0 x 34.3 in (410 x 560 x 870 mm) - no tools, no disassembly.
Two 200 W brushless DC hub motors on the rear wheels deliver smooth, balanced drive power, while the electromagnetic brake brings the chair to a controlled stop the moment the joystick is released. The 360-degree joystick controller mounts on either armrest and offers multiple speed settings to match the environment - from narrow hallways to outdoor pathways.
The 24 V 12 Ah lithium-ion battery pack give up to about 9.3 mi (15.0 km) of riding range per full charge, and a handheld remote for caregiver-assisted folding and driving. Whether you are navigating an apartment, rolling through a shopping center, or loading the chair into the trunk of a sedan, the HKM-996371 is built to make every step easier for the rider - and for the people helping them along the way.
Key Features
2 200 W brushless DC hub hub motors on the rear wheels - 400 W total - provide quiet, efficient drive power with good traction and a tight turning radius for indoor maneuvering.
24 V 12 Ah Lithium-Ion (288 Wh) snap-in battery pack. Slide out for off-board charging or to lighten the chair for transport. Air-travel friendly when carried per airline guidance.
Pull the release lever on the backrest and the chair folds flat to 16.1 x 22.0 x 34.3 in (410 x 560 x 870 mm). No tools required. Standing folded footprint fits most car trunks, closets, and storage rooms.
An ergonomic joystick with intuitive forward, reverse, and speed-dial controls. The mount swaps to either armrest. Multiple speed settings match your environment.
The motors engage an automatic hold whenever the joystick returns to neutral. On inclines up to 13 degrees the chair stays put without rolling, adding security during transfers.
The aluminum alloy frame keeps net weight around 40 lb (18 kg) while maintaining rigidity. Rated for riders up to 220 lb (100 kg).
8 in (front) and 11 in (rear) 8 in solid pu front, 11 in pneumatic rear tires. No air to top up, no pinch flats - reliable contact on pavement, tile, and carpet.
A wireless remote lets a caregiver fold the chair, adjust speed, or summon it across a room without being next to the joystick.
Full Specifications
Battery & Range
The HKM-996371 uses a removable 24 V 12 Ah lithium-ion battery pack. Combined energy stored: 288 Wh. On a full charge, riders typically cover up to about 9.3 mi (15.0 km) on flat pavement at moderate speed; actual range varies with rider weight, terrain, wind, temperature, and stop-and-go patterns.
For airline travel, each battery pack is sized to fall within the range many airlines accept for carry-on mobility devices. Always confirm with your airline before flying - rules vary by carrier and route.
Daily Use & Care
- Before riding: Confirm the joystick battery gauge reads a healthy charge, battery pack(s) are fully seated, and the joystick mount is secured on the chosen armrest.
- Transfers: Flip up the footrest and swing away the armrests to side-transfer from a bed, sofa, or car seat.
- Folding and unfolding: Switch the chair off and gently fold the backrest down onto the seat - the chair collapses into a slim standing package.
- Tire care: 8 in solid PU front, 11 in pneumatic rear tires do not require inflation. Wipe them with a damp cloth to remove grit and check the treads monthly for wear.
- Battery care: Avoid storing batteries fully discharged for long periods. Top up at least once a month during storage, and charge indoors at room temperature.
- Cleaning: Wipe the frame with a soft, damp cloth and mild neutral detergent. Do not soak the joystick, battery compartments, or motor hubs.
- Manual mode: Disengage the motor locks (per user manual) so a caregiver can push the chair like a manual wheelchair when needed. Re-engage locks for powered drive.
What's in the Box
- 1 x HKM-996371 Aluminum Alloy Folding Electric Wheelchair (frame, seat, joystick, motors, wheels)
- 1 x 24 V 12 Ah lithium-ion battery pack
- 1 x Off-board charger (100-240 V input)
- 1 x Joystick mount (pre-installed; left/right configurable)
- 1 x Pair of footrests (flip-up)
- 1 x User manual & quick-start guide
Frequently Asked Questions
Is the HKM-996371 airline-friendly?+
How far will it go on a single charge?+
Can the joystick be moved to the other armrest?+
Is it safe on small hills?+
Do the tires need air?+
What is the rider weight limit?+
How long does it take to charge?+
How do I fold and unfold it?+
Can it be used as a manual wheelchair?+
Service & Policies
Why Choose the HKM-996371
No tools, no disassembly. Pull the backrest release and the chair folds flat to 16.1 x 22.0 x 34.3 in (410 x 560 x 870 mm) - small enough for most car trunks, closets, and compact storage.
Two 200 W brushless hub motors on the rear wheels share the load evenly, giving stable traction and predictable handling indoors and outdoors - with a tight ~23.6 in turning radius.
Snap the battery pack out for off-board charging or to lighten the chair for lifting. Each pack is sized to fall within common airline mobility-device guidelines.
The aluminum alloy frame supports riders up to 220 lb (100 kg) while keeping the chair light enough for one caregiver to lift into a vehicle.
The 360-degree joystick mount swaps between left and right armrests, so left-handed and right-handed riders each get a natural control position.
The motors automatically hold the chair whenever the joystick returns to neutral. On slopes up to 13 degrees the chair stays put - no creeping during transfers.
Controls & Indicators
Pre-Ride Safety Checklist
- Battery check. Confirm battery pack(s) are fully seated, the gauge shows a healthy charge level, and connections are secure.
- Brake check. With the chair powered on a flat surface, release the joystick - the chair should stop and hold in place via the electromagnetic brake.
- Tire check. Inspect front casters and rear drive wheels for cracks, embedded debris, or unusual wear.
- Joystick check. Move the joystick through its full range of motion; the chair should respond smoothly in all directions.
- Footrest check. Confirm footrests are locked in the deployed position before placing weight on them.
- Armrest check. Ensure swing-away armrests are latched securely before riding.
- Motor lock. Confirm motor locks are engaged (drive mode) before powering on for riding.
- Environment scan. Check the path for steps, steep slopes (above 13 degrees), water, ice, or loose gravel before driving off.
Quick Troubleshooting
The chair will not power on.+
The motors do not respond to the joystick.+
The driving range is shorter than expected.+
The chair rolls on a slope when the joystick is centered.+
The joystick mount feels loose.+
Certifications & Manufacturing Standards
The HKM-996371 is manufactured in an ISO 13485-certified medical-device facility and carries the certifications commonly required to bring a powered mobility device to market in North America and Europe.
- CE - European Conformity marking for sale in the European Economic Area.
- FDA - Registered as a Class I mobility device with the U.S. Food and Drug Administration.
- ISO 13485 - Quality management system standard specific to medical devices.
- ISO 9001 - General quality management system certification.
- Airline-friendly lithium packs - sized within the range many airlines accept for mobility devices when carried per their rules. Confirm with your airline before flying.
Important Safety Notes
Powered mobility devices are helpful but can cause injury if used incorrectly. Read the user manual fully before the first ride and practice in a flat, open area until you are comfortable with the controls.
- Do not exceed the 220 lb (99.8 kg) rider weight capacity.
- Do not ride on stairs, escalators, or uneven terrain steeper than the rated 13-degree climbing slope.
- Keep hands, clothing, and straps clear of the rear wheels and motor hubs.
- Ensure the electromagnetic brake is active (joystick released = brake on) before transferring in or out.
- Avoid riding through standing water, deep puddles, ice, snow, or loose gravel.
- Charge batteries indoors at room temperature with the included charger only.
- Remove battery pack(s) before checking the chair into airplane cargo (check with your airline for their specific policy).
- Consult your physician or therapist if you have any medical condition that may affect safe operation of a powered wheelchair.
