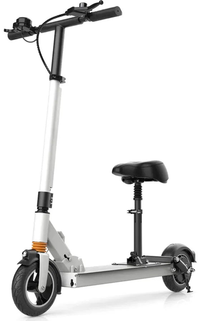

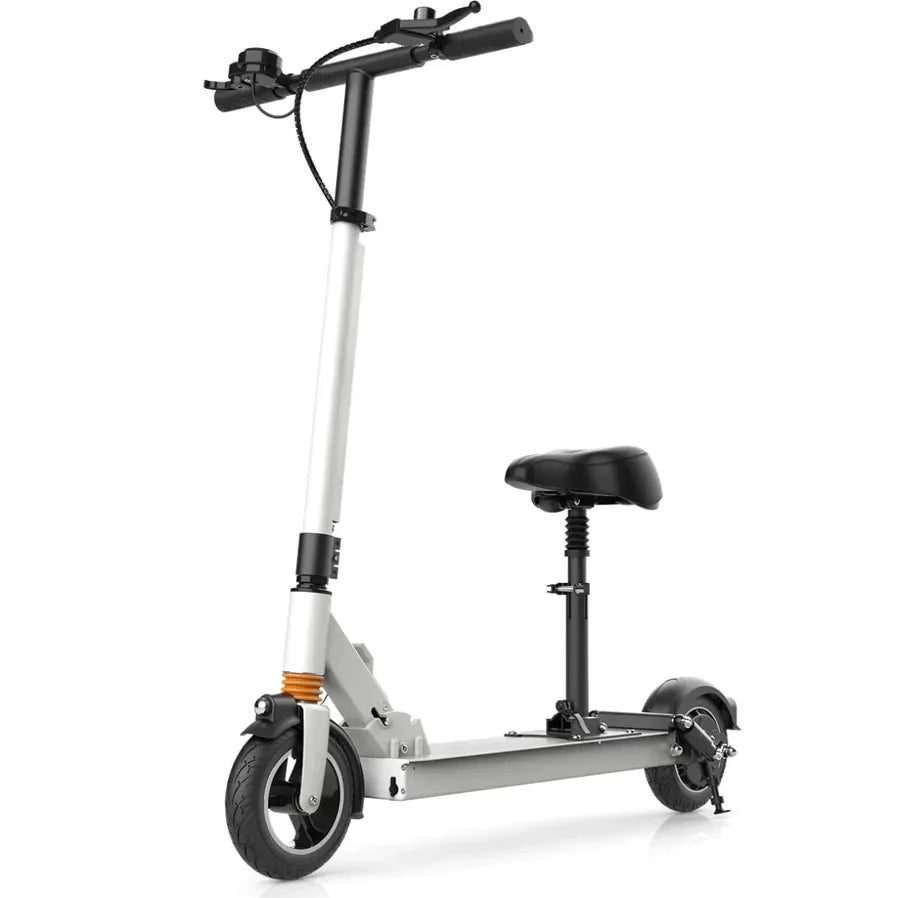

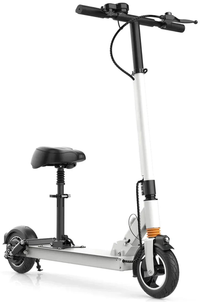

HKM-F7S Electric Scooter 500W Motor 48V 24Ah Battery 47.8 Mile Range Hydraulic Suspension Disc Brakes LED Light Folding
HKM-F7S
Suspension Long-Range Scooter
The F7S pairs a 500W rear-drive motor with a 48V 24Ah pack for up to 47.8 miles per charge, then smooths the whole ride over a patented hydraulic suspension that cuts road vibration by 40%. A front mechanical disc brake and rear electronic regenerative braking share stopping duty, 8-inch solid tires shrug off flats, and the 6061-T6 frame keeps the full package down to 43.2 pounds. It climbs a 30-degree grade without a run-up, folds flat in one step, and carries up to 265 pounds. Built for the commuter who wants range and comfort in one machine, not a compromise.
Key Features
Eight F7S details that turn a long commute into the calmest part of the day.
500W Rear-Drive Motor
A 500W brushless hub motor pushes from the back wheel, so traction stays planted when the road turns wet or uneven. The throttle map is tuned progressive and a sine-wave controller keeps the delivery quiet. Hills and headwinds are the honest variables in any ride.
48V 24Ah 1152Wh Battery
The 48V 24Ah pack stores 1,152 watt-hours in a 21700-cell arrangement, riding low in the deck for a stable stance. The management system balances cells and guards against overdraw, and the charge port sits behind a weather cover.
47.8 mi Per Charge
Up to 47.8 mi (76.9 km) on one charge covers a week of commuting without hunting for an outlet. Rider and cargo weight, terrain, and temperature all move the number, so treat it as a planning point rather than a promise.
27.9 mph Governed Pace
A firmware-governed 27.9 mph (44.9 km/h) keeps pace with urban traffic while staying inside safe operating limits. Three preset modes - Eco, Standard, and Sport - let you trade speed for range, or the reverse, without tools.
Patented Hydraulic Suspension
The patented hydraulic fork damps through calibrated fluid flow rather than a metal coil, so it absorbs a sharp edge in a single controlled motion. Independent testing recorded up to 40% less transmitted vibration than a spring fork of the same travel class.
Dual Braking System
A front mechanical disc brake works with rear electronic regenerative braking. Squeeze the lever and the motor reverses into a generator, feeding energy back to the pack while cutting pad wear - a pairing that recovers up to 6% of range in stop-and-go traffic.
8-inch Solid Tires
8-inch (20.3 cm) solid tires use a multi-durometer compound - softer on the tread for grip, firmer in the core for structure. There is no air to leak and no tube to pinch, so flats and pressure checks are off the list.
43.2 lb Ultralight Frame
At 43.2 pounds (19.6 kg) the 6061-T6 aerospace frame is FEA-sculpted to drop every spare gram while keeping a safety margin. It folds in one step and carries one-handed, so stairs, trunks, and transit rides stay simple.
Overview
Long range by design, suspension-tuned for the road.
The F7S is the long-range commuter built around a single idea: distance should not cost you comfort. Roll out with a full 48V 24Ah pack and 47.8 miles of range is on the table, enough to leave the charge cable at home for the whole work week. The 500W rear-drive motor pulls from the back wheel for a planted takeoff, and the patented hydraulic suspension soaks up cracked pavement before it reaches your feet, cutting road vibration by 40%. When it is time to stop, a front disc and rear regenerative brake share the work, feeding energy back to the pack instead of throwing it away as heat. 8-inch solid tires never go flat, the 6061-T6 frame keeps the build down to 43.2 pounds, and a 30-degree gradeability means ramps and bridges are not a detour. This scooter is about turning the daily trip into the calmest, longest glide in its class.
Glide Far, Ride Smooth
Built to glide, from the first push.
The low deck and rear-drive motor make the ride feel planted the moment both feet land. The suspension filters out broken pavement, and the long-range pack keeps the glide going.
Full Specifications
Every figure below is shown in US customary units first, with metric units alongside it
Battery and Charging Details
1152Wh of capacity, filled in under a workday’s pause.
The 48V 24Ah pack holds 1,152 watt-hours and fills from empty in about 5.5 to 6.5 hours on the included 54.6V fast charger. The management system pushes harder through the 0–80% phase, then tapers the final 20% to protect the cells, so a mid-day top-up covers most of the ride home. Real-world range runs 47.8 to 52.9 miles depending on rider and cargo weight, terrain, and temperature, and cold weather trims capacity until the pack warms. Charge soon after a ride rather than parking it warm and full, store it indoors at room temperature, and keep the charge-port cover closed so dust and moisture stay out of the electronics.
Daily Use & Care
Ten minutes a month keeps the 47.8-mile range where it belongs.
Wipe the deck and stem with a damp cloth after wet rides - no pressure washer, ever. Solvents dull the finish; water is enough.
Check the folding latch is fully locked before every ride. A loose latch clicks under load - lock it and the noise disappears.
Charge indoors at room temperature and unplug when the light turns green - a full 0–100% fill takes about 5.5 to 6.5 hours. Dry contacts charge faster and wear slower.
Keep the charge-port cover closed between charges so moisture stays out. A closed port keeps grit and rain away.
The 8-inch solid tires are air-free, so there is no pressure to check. Just glance at the tread for cuts and embedded debris before each ride.
Check the disc brake pads monthly; pads wear silently until they are gone. Pads wear out; a missed stop is not.
Confirm the battery gauge shows the charge you expect before heading out. The gauge is the first diagnostic you own.
Spin both wheels weekly and check that nothing rubs. A rubbing guard eats into the 47.8-mile range before the 1,152Wh pack does.
What’s in the Box
The HKM-F7S arrives nearly assembled, first-ride essentials in one carton.
1 x HKM-F7S Electric Scooter
Arrives mostly assembled - torque-check the stem and charge first.
1 x Charger
Recharges the pack at any standard wall outlet.
1 x User Manual
Safety, setup, and care instructions.
1 x Quick-Start Guide
A one-page setup checklist for the first ride.
1 x Warranty Service Card
24 Months Warranty Service and support contacts.
1 x Assembly Toolkit
Allen keys and wrenches for stem and handlebar hardware.
1 x Spare Screws Set
Extra fasteners for racks, fenders, and accessories.
1 x Cleaning Cloth
Wipes the deck and frame clean after wet rides.
1 x Reflectors Kit
Front and rear reflectors for low-visibility rides.
1 x Phone Holder
Mounts a smartphone for app control and navigation.
1 x Information Card
Model specs, certification marks, and support QR codes.
Why Riders Pick the HKM-F7S
Eight reasons the F7S earns its daily keep.
Rear-Wheel Drive
The 500W motor drives the rear wheel, so the front stays light for steering while the rear grips and pushes. Weight sits balanced and takeoffs feel planted - the F7S settles into a stable ride the moment both feet land.
Patented Hydraulic Suspension
The hydraulic fork damps through fluid valves instead of a steel coil, so pothole edges are absorbed once and done. Up to 40% less vibration reaches the deck, which means less fatigue on a long commute.
6061-T6 Aerospace Frame
The 6061-T6 aerospace frame keeps weight down to 43.2 pounds for stairs and trunk loading. The finish shrugs off daily scuffs that would mar cheaper models. It is built to be used, not babied.
5.5-Hour Fast Charge
Plug into any standard outlet and the 1,152Wh pack is full in about 5.5 to 6.5 hours. A mid-day top-up covers the ride home, and a full charge costs pennies compared with the same trip by car.
Folds in Seconds
The 43.2 lb 6061-T6 frame folds flat in one step, so storage stays an everyday habit rather than a chore. Folded, it slides into a trunk, a closet, or under a desk.
265 lb Load Capacity
The deck carries up to 265 pounds with margin to spare. Straps hold better than hands - route them through the frame. The rating includes real-world cargo.
Disc + Regen Brakes
A front mechanical disc and rear electronic regenerative brake share stopping duty, so the motor feeds energy back to the pack while the pads stay cooler. The pairing recovers up to 6% of range in traffic.
Zero-Flat Tires
8-inch solid tires never go flat and never need air. There is no tube to pinch and no valve to check, so the first ride starts at full and stays that way.
Folds Flat, Carries Light
One step to stow, one hand to carry.
The aerospace frame folds flat in one step, sliding into trunks, closets, and under desks. It carries one-handed up stairs, and the locked deck keeps the whole package compact until the next ride calls.
Controls & Indicators
Every F7S control explained in a single line.
Throttle
Twist or thumb, the response is progressive and easy to modulate. The manual documents each control in full.
Brake Lever
One finger is all the lever asks for; the front disc and rear regen do the rest. All controls are reachable without taking your hands off the bars.
Power Button
Long-press to arm the system, short-press to toggle modes. Power cycle first; it clears more faults than anything else.
Charging Port
The charge point sits behind a weather cover. Try another outlet before blaming the charger or the pack.
Display
Speed, battery level, and mode stay on one LED screen. Wipe the display with a dry cloth; sprays cloud the lens.
Handlebar Clamp
The clamp holds the bars at your chosen height; confirm it is tight before riding. The stem fold is the strongest joint on the scooter when properly locked.
Frequently Asked Questions
Common F7S questions, answered briefly.
How much assembly is required?
Mostly assembled: torque-check the stem and handlebars, confirm the brakes bite, and charge before the first ride. The stem bolt is the one connection you should never second-guess.
How far will it go on one charge?
Up to 47.8 mi (76.9 km) per charge from the 1,152Wh pack. Rider and cargo weight, terrain, and temperature are the big three variables to watch.
How fast does it go?
The pace is set for city-legal riding - confirm your local rules and regulations before riding on public paths or roads.
Is it foldable?
Yes - the deck folds in one step for carrying, trunk storage, and closet parking. Folded flat, it slides into surprisingly tight spaces.
Can it ride in the rain?
Light rain is fine - wipe it dry afterward, keep the charge port closed, and never soak the battery bay.
What accessories are included?
A 54.6V fast charger, user manual, and fitting toolkit ship in the box. Everything in the box list ships in the same carton as the scooter.
Is a helmet required?
Yes, every ride - a certified helmet is inexpensive protection on any electric scooter. Head protection is the one piece of gear worth getting right.
What warranty is included?
24 Months Warranty Service, 180 Days Purchase Protection, and 30 Days Money-Back Guarantee. Warranty terms start the day the scooter ships, not the day it rides.
Quick Troubleshooting
Common F7S issues and what to check first.
The motor does not engage.
Confirm the battery is charged and the system is powered on, then check all connectors are seated. A connector left half-seated is the most common no-power cause.
Range dropped noticeably compared with when it was new.
Check the solid tires for cuts and embedded debris first - they are air-free, so flats are not the issue. A sudden range drop usually points to the battery or terrain.
The brakes feel weak.
Check the disc pad and rotor condition; if the lever still reaches the bar, have the circuit serviced. Wet performance is the true test of any brake system.
The deck creaks over bumps.
Tighten the folding latch and stem clamp; a quarter turn usually finds it. A creak is information, not a defect.
The display or lights will not power on.
Confirm the pack has charge and all connectors are seated. Switch off, wait 30 seconds, and power on again. Power cycling is the gentlest first step.
The charger light never turns green.
Check the port cover is fully seated and try a different outlet before assuming the charger is at fault. The port cover is the smallest part with the biggest job.
Certifications & Standards
Documented and tested for sale and transport.
CE
European Conformity (CE) marking covering the electrical assembly and charger.
RoHS
Restriction of Hazardous Substances (RoHS) compliance for the electronics and cells.
UN38.3
Lithium battery transport certification for safe shipping of the pack.
MSDS
Material Safety Data Sheet documenting the lithium pack for carriers.
ISO 9001
Quality management system standard applied across the production line.
Tested Cells
Each battery batch is cycle-tested before assembly and again before shipping.
Zero-Flat, Read Anywhere
Solid tires and a clear dashboard.
Solid tires shrug off glass and debris for a zero-flat ride, while the LED display keeps speed, battery, and mode large and legible. The brakes keep stops predictable in every condition.
Pre-Ride Safety Checklist
Thirty seconds of F7S checks before every ride.
Inspect the tires for cuts, glass, and embedded debris. Tire tread is the first thing to check after a long season.
Keep the motor area clear of mud, string, and debris. The motor vent is the only place air should ever enter.
Tighten handlebar and stem hardware monthly - vibration loosens fasteners. A quarter-turn usually finds the creak.
Squeeze the brake lever hard while stationary - the deck should not creep. Wet leaves are as slick as ice.
Wear a helmet every ride and use the lights in low visibility. A certified helmet is inexpensive protection.
Listen for new creaks and rattles; they are the first sign of a loose joint. A creak is information, not a defect.
Ride a quiet street loop first and confirm clean throttle response. Power cycling clears more faults than anything else.
Check your local e-scooter rules before riding on shared paths. Rules vary by city, and they change.
Service & Policies
Every HKM-F7S is backed by coverage designed to protect your investment.
Free Shipping on All Orders
Every order ships free. Handling Time: 0-1 business days (Monday to Friday). Transit Time: 2-5 business days (Monday to Friday). A tracking number is emailed as soon as the parcel leaves our warehouse.
180 Days Purchase Protection
Your purchase is protected for 180 days from the delivery date against manufacturing defects and damage in transit. If something arrives wrong, we make it right.
30 Days Money-Back Guarantee
Not completely satisfied? Request a return within 30 days of delivery for a full refund. We keep the process simple and hassle-free.
24 Months Warranty Service
The product is covered by a 24-month warranty from the delivery date against manufacturing defects. Coverage includes parts and labor; normal-wear items are excluded.
Important Safety Notes
Read before the first HKM-F7S ride.
This HKM-F7S is an electric scooter rated per the spec sheet below - ride it where the law allows. Wear a helmet every ride and ride only where the law allows. Read the manual first and practice throttle and braking in an open, traffic-free area. Do not exceed the load limit marked on the deck. Slow down substantially on wet surfaces, gravel, and steep descents - braking distance grows fast. Never open, puncture, or modify the battery. Charge only with the supplied charger, indoors and attended, and unplug when full.
HKM-F7S - 500W motor - 48V 24Ah battery - 47.8 mi range. Specifications are for reference; actual performance varies with rider, terrain, and temperature. This page describes the product only and is not legal advice regarding vehicle classification - confirm local regulations before riding on public roads.
